SMC NCDA1C400-0400 Pneumatic tie rod Cylinder 100mm stroke 100mm bore 250 psi
$ 76.56
Description

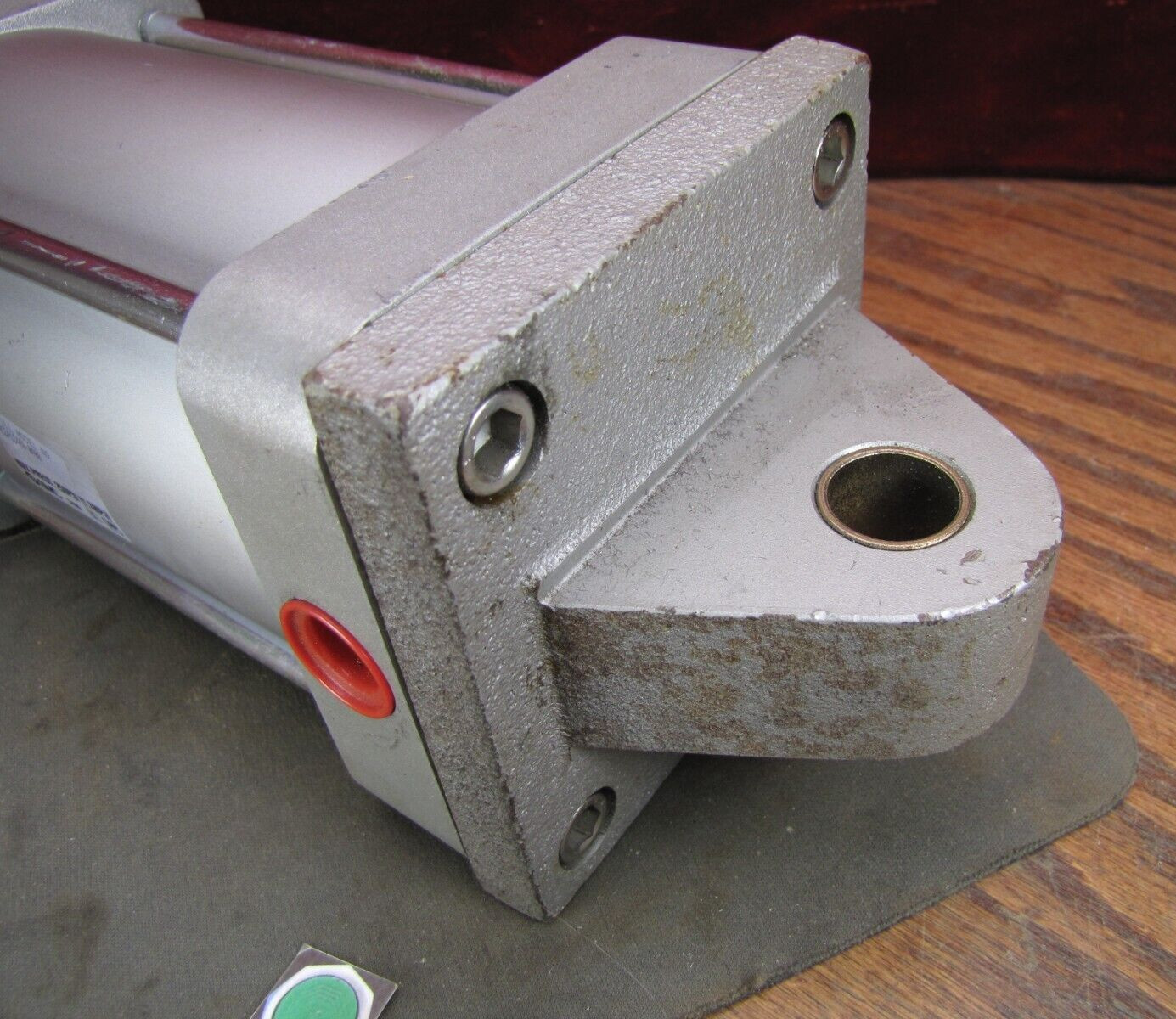

SMC NCDA1C400-0400 Pneumatic tie rod Cylinder 100mm stroke 100mm bore 250 psi. Port Threads : 1/2" NPTF (standard for 4" bore in NCA1 series). Bore sizes in NCA1 series range from 1.5" to 4" (expanded line up to 8"); this model is 4". Rod End : Male thread (standard for NCA1 series). The SMC NCDA1C400-0400 is a double-acting, single-rod pneumatic cylinder from SMC’s NCA1 series, designed for medium-duty industrial applications and NFPA interchangeable for compatibility with standard mounting configurations. Below are the key specifications based on available information and web results for similar models (e.g., NCDA1B400-0400): Series : NCA1 (Medium-Duty Tie-Rod Cylinder, NFPA Interchangeable) Bore Size : 4" (approximately 101.6 mm) Stroke Length : 4" (approximately 101.6 mm) Action : Double acting (uses compressed air through two ports to extend and retract the piston) Mounting : Rear pivot mount (indicated by “C” suffix, typically a clevis mount in NCA1 series) Magnet : Built-in magnet for auto-switch capability (indicated by “NCD” prefix) Port Threads : 1/2" NPTF (standard for 4" bore in NCA1 series) Operating Pressure : 0.06–1.75 MPa (8.7–250 psi) Proof Pressure : 1.5 MPa (218 psi) Piston Speed : 50–500 mm/s Cushioning : Adjustable air cushion at head and rod ends (standard for NCA1 series) Material : Aluminum alloy body, stainless steel piston rod, NBR gaskets/seals Rod End : Male thread (standard for NCA1 series) Features : NFPA interchangeable with crimped piston rod assembly for durability. Pre-lubricated for maintenance-free operation. Supports 11 mounting styles (this model uses rear pivot/clevis). Bore sizes in NCA1 series range from 1.5" to 4" (expanded line up to 8"); this model is 4". Auto-switch capable with reed or solid-state switches mountable without dimensional changes. Applications : Suitable for medium-duty automation tasks, such as material handling, lifting, or pushing in industries like automotive, manufacturing, or packaging. Thank you for clicking on StartButtons
