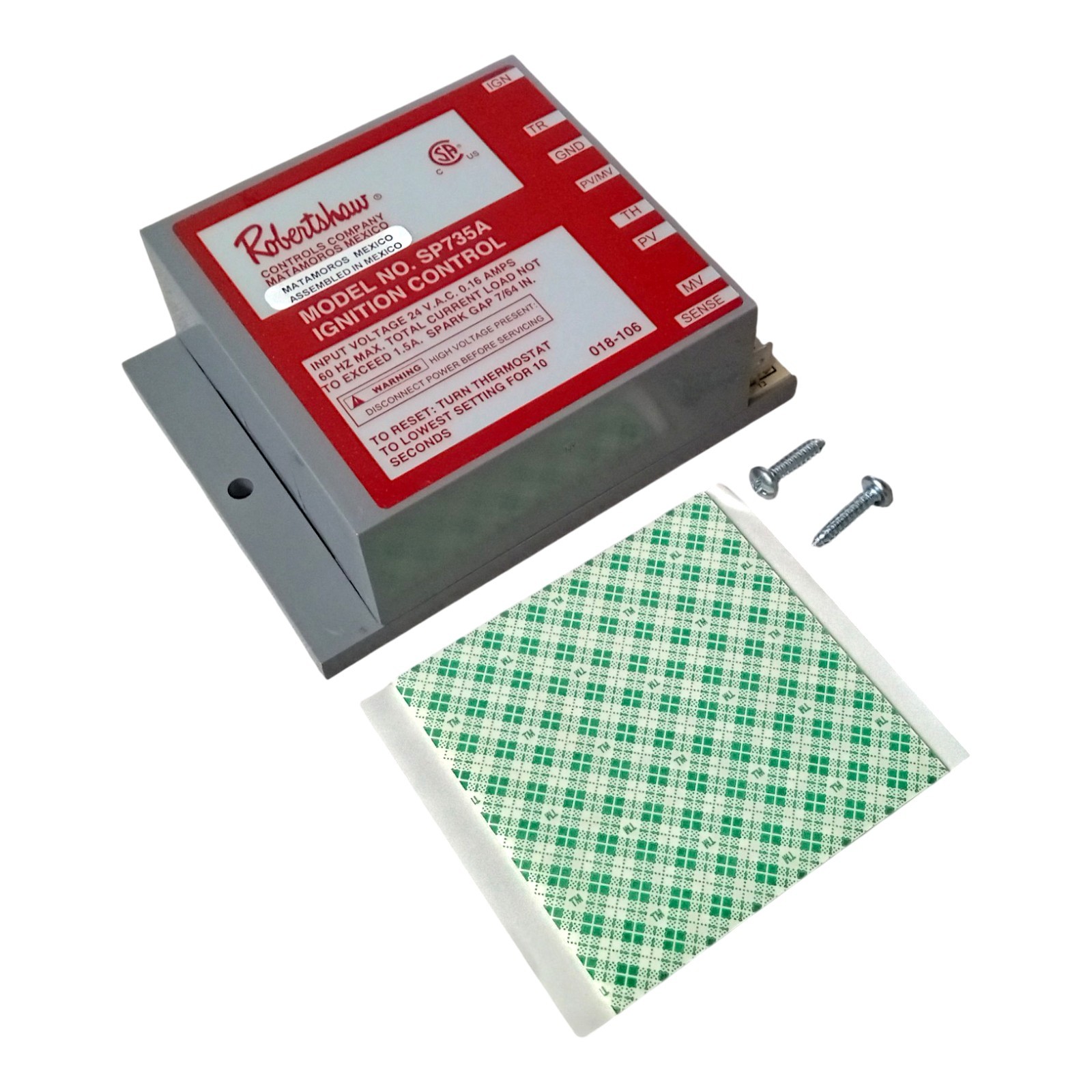

Robertshaw 780-735 SP735A Lockout Ignition Module
$ 57.28
Description
Robertshaw 780-735 SP735A Lockout Ignition Module. Model SP735A Features: Series Application. Module Robertshaw Part number 780-735. 0/60 Hz The Robertshaw 780. is established. The Robertshaw 780-845. Lockout Ignition Module Robertshaw Part. Lockout Timing NA Thermostat Anticipator. Robertshaw 780-735 SP735A Lockout Ignition Module Robertshaw Part number 780-735 Ignition Control Module Model SP735A Features: Series Application Intermittent Pilot Ignition Control, Lockout Electrical Rating 24V AC Spark Rate 3-4 per second Maximum Total Current Load 1.5 Amps Flame Failure Re-Ignition Time 0.8 seconds Safety Lockout Timing NA Thermostat Anticipator Setting 0.7 Amps Temperature Range -40 F to 175 F Flame Sensor Current 0.7 mA DC @ 25 C Transformer 24V AC, 20VA Control Voltage 0/60 Hz The Robertshaw 780 Series Pilot Controls feature flame rectification with solid-state logic and flame sensing to provide automatic sequencing that will ensure proper operation of an intermittent pilot ignition device. When the thermostat calls for heat, the 780 series control simultaneously initiates ignition sparking and opens the pilot valve portion of the gas valve. Pilot flame recognition stops ignition sparking and opens the main valve portion of the gas valve. Pilot burner flame is continuously monitored at a synchronous frequency for the duration of the heating cycle. Should the pilot flame fail during the heating cycle, the control will shut off the main valve until the pilot flame is established. The Robertshaw 780-845 lockout ignition control provides 90 seconds of spark, followed by a six minute time delay (purge) between ignition attempts. If the pilot flame is not sensed after three tries, the control goes into a one-hour lockout period. At the end of the lockout period, if the demand for heat is still present, the unit will repeat the three tries for ignition. Replacement for Brands and Numbers: SP735U,Air mold,SP735AL,Alco controls,SP735,Alco food prep.,S03-00404,Aluminum co. of amer.,RLY1030,American air filter,P271000,American laundry,OS39688A,American machine,H8900658H,Balley case & cooler,H350IGNP,Banner metals,E1123,Barber-coleman,E087107,Bard,C6391301,Berkel,9998-071,Big dutchman,780-73E,Brunner mfg. co.,2/5/7590,Cadet,62-22821-01,Camco,5H71930B,Cdn armature,56036A,Century,38012B001,Clamco corp.,36502-00,Cleveland/range,32-0319,Climate master,27-20021,Coffee mate corp.,233-36114,Compu-aire,150140-10-01,Control data corp.,150106-03-01,Cook machine,13886B,Coronado,120135G1,Cory,1100-230,Council mfg. corp.,8073563,Frymaster,13707-22S,Goodman mfg.,100-00810-15,Henry,100-810-15,Henry,100-00810-13,Henry hope x-ray,100-810-13,Henry hope x-ray,100-00810-07,Hiross industries,100-810-07,Hiross industries,100-00810-03,Homestrand,100-810-03,Homestrand,S8610B1007,Honeywell,100-00810-01,Hoover,100-810-01,Hoover,100-00802-03,Ideal disp/mundean,100-802-03,Ideal disp/mundean,100-00802-01,Imperial,100-802-01,Imperial,05-02-0247,Inglis,8071506,Jackson,3650200,Jc pitman & sons,3002680,Jet spray cooler co.,L37-298,Johnstone supply,608020,Keller columbus,600995,Kenyion marine,142010,Kolpak industries,92407,Krispy kreme,78071,La crosse,33098,Lantz,32020,Lau,30,Lion mfg. co.,29,Lipman refrig(yates),SP735A,Robertshaw,X13130192,Trane,63538,Uni-line,63716,Uni-line,347371,Unknown,NG62010,Unknown,4E399,Westward Product Details BrandRobertshawManufacturerRobertshawMpn780-735 Robertshaw Part number 780-735Ignition Control Module Model SP735ASolid-state logic and flame sensing Check out my other items. - Powered by Robertshaw 780-735 SP735A Lockout Ignition Module Robertshaw Part number 780-735 Ignition Control Module Model SP735A Features: Series Application Intermittent Pilot Ignition Control, Lockout Electrical Rating 24V AC Spark Rate 3-4 per second Maximum Total Current Lo
