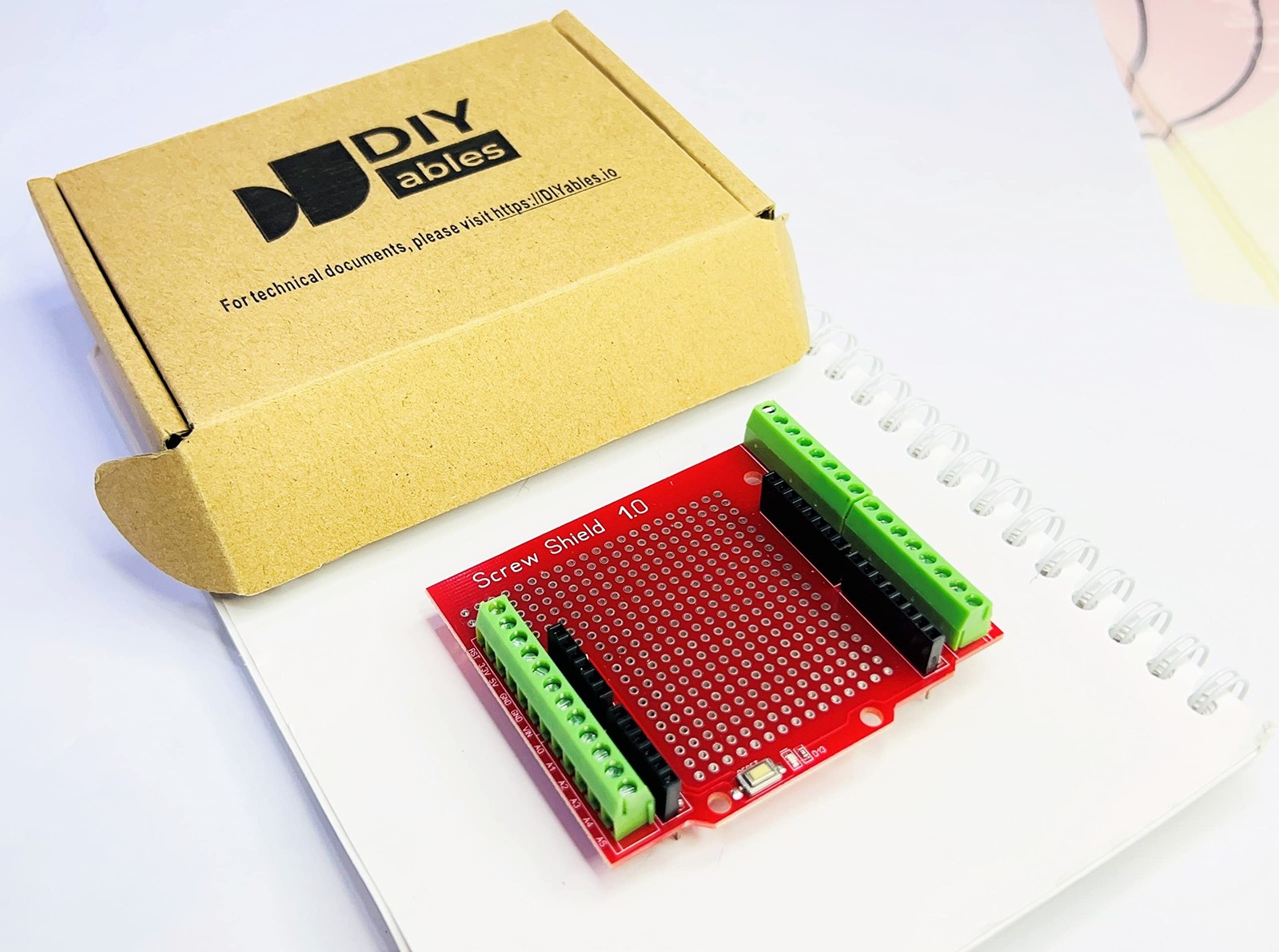

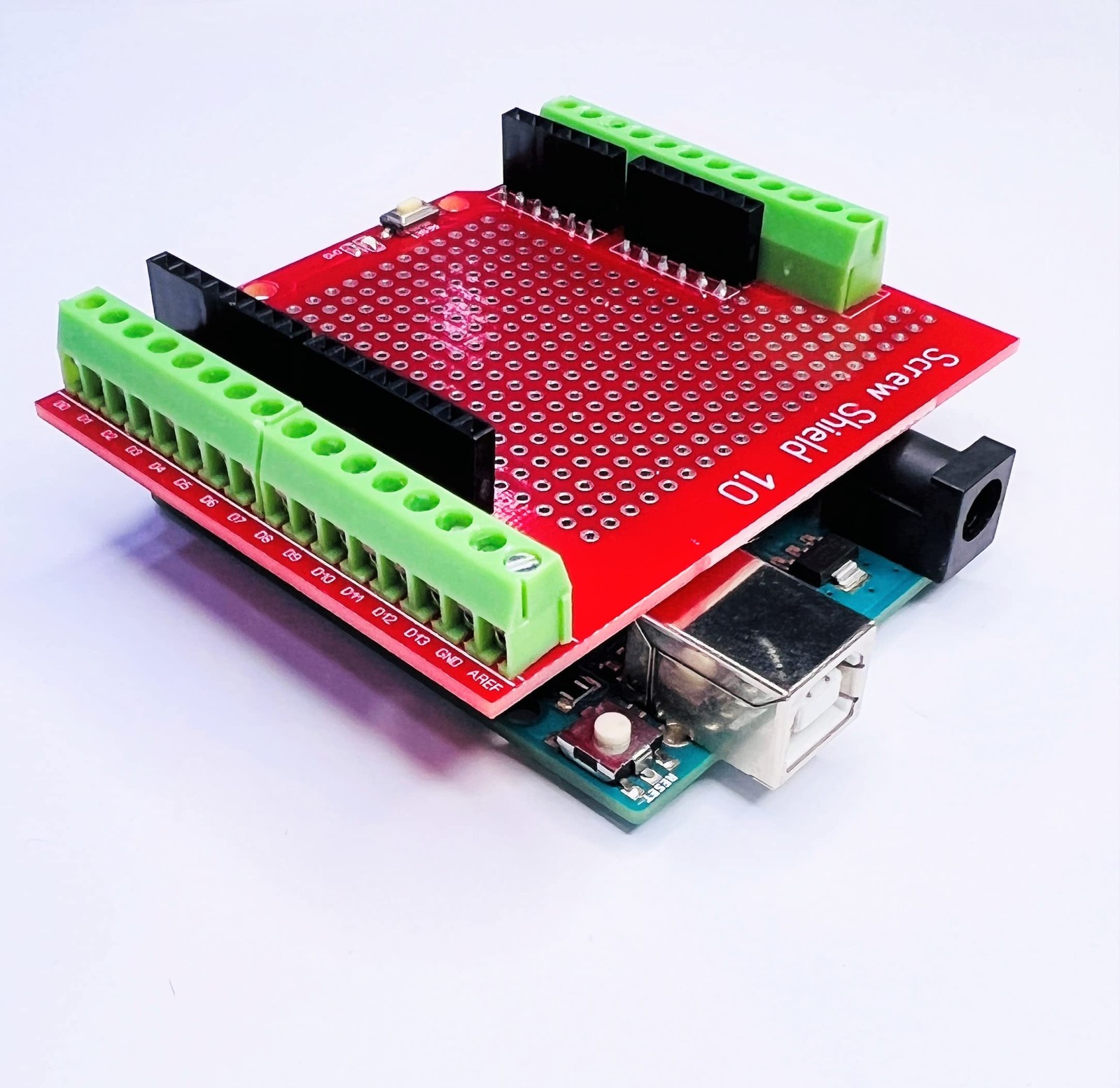

Proto Screw Shield for Arduino Uno R3 R4 - Assembled Terminal Block Prototype...
$ 6.53
Description
Proto Screw Shield for Arduino Uno R3 R4 - Assembled Terminal Block Prototype.... It does not add extra common GND or V+ rails. WIDE BOARD COMPATIBILITY: Fully compatible with Arduino Uno R3/R4, Uno SMD, Leonardo, and Zero. They provide a convenient way to connect wires securely without using jumper cables. NOTE: 1. FEMALE PIN HEADERS – Each header actually has two parts. The **female socket** is on the top side of the board, which allows you to plug in jumper wires or shields. The **metal pins of the header pass through the PCB and extend to the bottom side** of the board. These pins are simply the leads of the header component and are not intended as additional connection points. 2. SCREW TERMINAL BLOCKS – Each screw terminal is directly connected to the corresponding Arduino pin. They provide a convenient way to connect wires securely without using jumper cables. 3. PROTOTYPING (SOLDERING) AREA – The holes in the prototyping area are NOT connected to the female headers or screw terminals. This area is intentionally left isolated so users can build their own custom circuits without unwanted connections. 4. GND AND VCC PINS – The board provides the same number of GND and VCC pins as the Arduino Uno itself. It does not add extra common GND or V+ rails. Each GND or VCC terminal corresponds directly to the matching pin on the Arduino. In summary, each Arduino pin is broken out to both a female header and a screw terminal, while the prototyping area remains independent for user-defined circuits.PROTOTYPE EXPANSION BOARD FOR ARDUINO UNO: Designed to expand your Arduino Uno with added prototyping space and terminal connectivity—ideal for electronics projects and custom circuits.ASSEMBLED TERMINAL BLOCKS INCLUDED: Comes with screw terminal blocks pre-assembled, making it easy to connect external wires securely without soldering.INTEGRATED SOLDERING AREA: Features a dedicated prototyping area for adding resistors, sensors, and custom components directly onto the board.FEMALE PIN HEADERS INCLUDED: Includes female headers for easy access to all Arduino Uno pins, supporting fast jumper wire connections and module attachments.WIDE BOARD COMPATIBILITY: Fully compatible with Arduino Uno R3/R4, Uno SMD, Leonardo, and Zero. Also fits Arduino Mega, Giga and Due form factors for flexible use.
