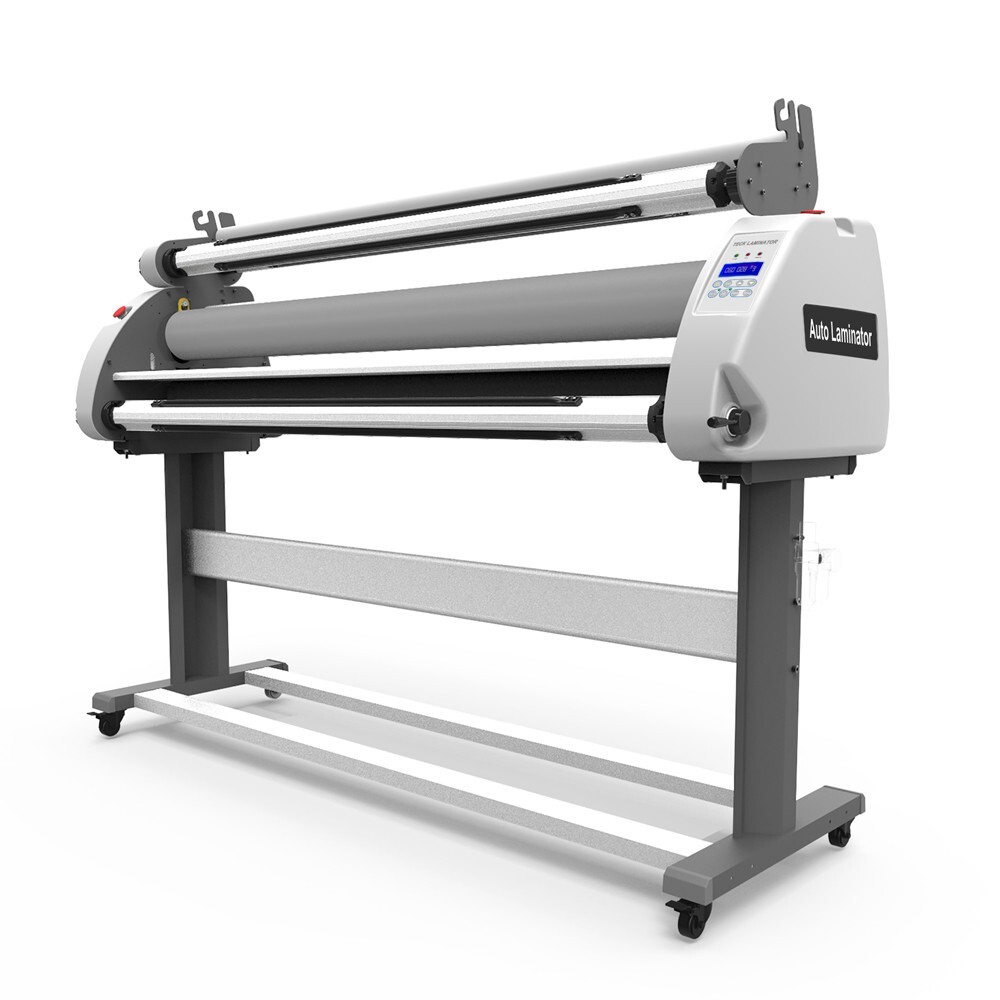

PreAsion 63 Inch Pneumatic Cold Roll Laminator Machine 1600mm Wide Format Full-A

Description

63In Full-Auto Pneumatic Low Temperature Laminating Machine（Excluding air compressor） Product Overview The novel laminating machine can cover drawings with different films through the cold press technology and the heating function. The finished drawings will be waterproof, colorfast and colorful. The films with or without bottom paper can be used by our excellent machine. The pneumatic laminator also has a function for easily cutting the drawings covered with films. It will be a satisfying partner for your work and business. Our Customer Service System will offer you a long-term and reliable technical service! Please believe that we are always pursuing outstanding technical performance and excellent quality! Note: The machine should be used with the 8L air compressor prepared by the customer. Product Parameters Max. laminating width 63In (1600mm) Max. laminating thickness 1.38In (35mm) Max. Laminating speed 10m/min Temperature adjusting range Room temperature-140 ℉ Roller lifting way Using cylinders and bilateral linkage promotion Roller heating type Within the infrared heating Preheating time 10-15min Diameter of upper and lower rubber rollers 5.12in (130mm) Motor power 120W Heating rod power 1500W Rated input voltage 110V Net weight 293 Lb Non-contact infrared temperature measurement system Electric foot switch Product Features The film supporting rods can effectively support films with/without liner paper, can be conveniently assembled and disassembled, can be selected for supporting different films as needed, is durable and firm and has a long service life. The film stripping rod is a large-diameter aluminum alloy rod, is subjected to surface oxidization treatment, can effectively reduce vibration and noise in the working process and avoids chatter marks in the film stripping process. Independent tensioning knobs are used for adjusting the tensioning degree of all supporting rods, can control the film at any time and improve the film laminating effect, and are easy to operate and control and high in working efficiency. The pneumatic lifting control handle can be used to manually control the rubber roller to move up and down, the double-side air cylinder linkage lifting system can effectively improve the lifting effect, and the using effect is good. The emergency switch can be used to immediately stop the machine in emergency, can be easily pressed and rotated, effectively protect the personal safety and provides safety guarantee for operators. The unique microcomputer control panel is adopted to control the machine, the user can select the proper laminating function freely and set different parameters, and the machine state can be clearly displayed. The high-quality heat temperature resistant rubber roller is used for lamination, the maximum laminating width can be 63in, the maximum laminating speed can be 10m/min, and the rubber roller can ascend and descend pneumatically. The pressure gauge can display the pressure in real time, the operator can observe and monitor the pressure change conveniently, reference data are provided for recording the machine state, and overpressure and other accidents can be effectively avoided. The foot pedal can assist the operator in operating the machine, the operator can precisely control the laminating process through hand and foot cooperative operation, and the manual mode and the automatic mode can be quickly switched. The four cutting devices are freely installed on the supporting rod, can effectively remove the white edges of drawings and precisely cut the drawings into sections as needed, and lamination and cutting operation can be conducted simultaneously. The collecting rods can easily collect finished products and back paper, save time and labor, reduce the labor intensity and are firm and durable in structure and convenient to remove and install. The universal wheels are arranged at the bottom of the machine so that the machine can convenient to move and fix and adapt to different working environment. Instruction of Control Panel Application The Pneumatic Low Temperature Laminating Machine can be widely applied to lamination of wedding photos, posters, advertising photographs, book covers, documents, calligraphy and painting, invitations and so on, and is suitable for the enterprises and industries of advertising, printing, photography, packaging and the like. Laminating Process Operation method 1. Connect the air compressor. (No air compressor is included, and customers need to use their own air compressor.) 2. Connect the 110V power supply and turn the emergency switch. Both cold lamination and thermal lamination can be conducted, and the detailed operation method can refer to the following video. https://youtu.be/F_RfF5SYt_o Pay attention to safety when using, do not put hands into the machine during operation. Item Number (120076): 1 x 63In Full-Auto Pneumatic Low Temperature Laminating Machine(Excluding air compressor) Shipping & Handling Details Default Shipping Cost or Free Shipping Information: Default shipping cost or free shipping service is only for the lower 48 United States by UPS Ground or USPS. Other areas or needs other shipping ways, please contact us. Buyers from Guam, Puerto Rico, Virgin Islands, American Samoa, Alaska, Hawaii, PO Boxes, APO/FPO addresses or other countries/areas, there WILL be extra shipping costs, please contact us for more detailed information. Please make sure your address is valid for both UPS and USPS services. Any costs incurred because of incorrect or undeliverable address should be undertaken by buyer. Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends & public holidays. Sales tax / Customs duties: Any sales taxes or Customs duties are not included. If came out, they must be undertaken by the buyer. Sales Tax of 8% will be applied for orders shipped within the state of California. Damage In Shipping: Email or call us First! We will work with you to get the case resolved in the fastest method. Return / Refund If you are not 100% happy with your purchase, please contact Us. Please don't directly opened a request or case without informing us, or else, we will do some discounts on the warranty and other sales-services later on. Hope for your understanding. Returns & Exchanges All returns must be made within 14 days of delivery date. Items must be in new, unused condition, with all original materials included with the shipment. A partial refund may be applied for opened or damaged items, depending on the condition. Items returned under the buyer鈥檚 remorse: The return shipping fee must be covered by the buyer; The original shipping cost will also be deducted from the refund. 15% restocking fee of the items purchase price will be charged. Returns that are the result of our seller's error: Buyer will receive a full refund of the item as well as shipping charges All returns require a RA (Return Authorization) number that will be given by our seller. Please contact with us at first for more details. Defective & Damaged Products If product was received damaged or not as described, please send us some pictures or videos, so we could well understand your problem, then solve them for you ASAP. Besides, it's much helpful for us to claim with UPS, remind our related department to pay much more attention to packaging later on. Hope for your understanding. Replacement or refund of defective or damaged products can only be returned in exchange for the exact same product, or else, the purchase price will be refunded back to your original payment method. If an item is received damaged, customer service must be contacted within 7 days of receiving your item. All returns require a RA (Return Authorization) number as above. Payment eCheck Issues: Payments via eCheck do not clear immediately. Usually you will wait 5-7 days after checkout for it to clear. Then we will arrange shipments for you. Warranty & Feedback 6 months' warranty for the machines, not for the consumables. We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost. Any warranty shipping cost to us is responsible by buyer. Any shipping cost to buyer is responsible by the seller. We committee to the customer satisfaction and want to bring you the best purchase experience. If there is any problems, please contact us ASAP. If not, please leave us a positive feedback as it's very important for us. Thanks very much.
