Pneumatic Air Cylinder Screwed Single Piston Rod Dual Action 2.5" Bore 6" Stroke

$ 28.51

Brand: Unbranded Unit Type: Unit Bore Diameter: 63mm/ 2.5 inch Cylinder Type: Single-Rod Cylinder Cylinder Action: Double-Acting Stroke Length: 12 in Maximum Pressure: 1.0 MPa Unit Quantity: 1 Suitable Media: Compressed Air

Description

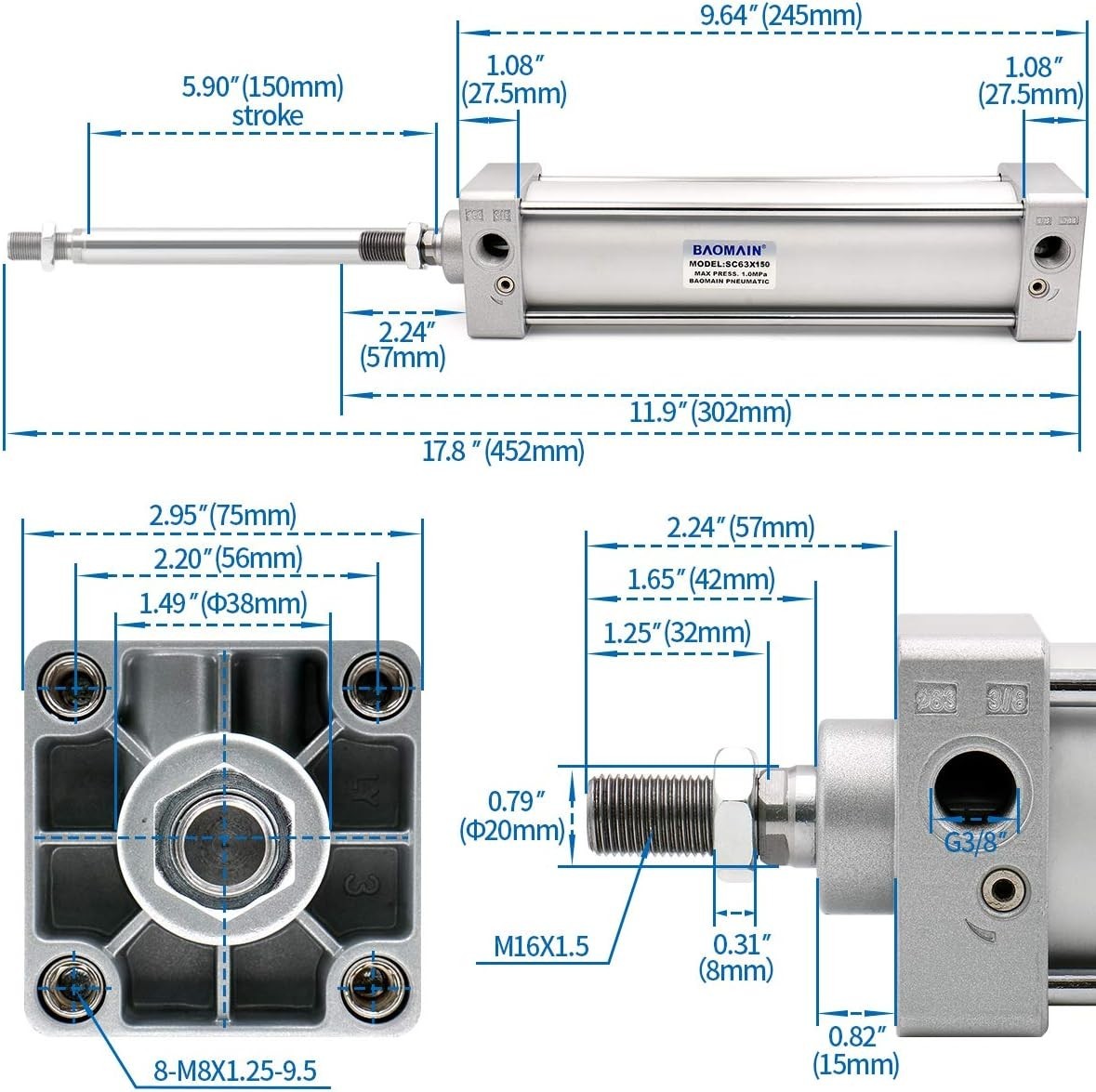

Pneumatic Air Cylinder Screwed Single Piston Rod Dual Action 2.5" Bore 6" Stroke. ☛ Model: SC 63 X 150 ; Bore: (2 1/2)" (63mm), Stroke: 6"(150mm);. ☛ Action Type: Double Acting, Rod Type: Single Rod. ☛ Port size: PT3/8 ; Piston port size: M16X1.5. ◾ Piston port size M16X1.5. ◾ Rod Type Single Rod. Fast Friday Store ✿✿✿✿✿ Pneumatic Air Cylinder Screwed Single Piston Rod Dual Action 2.5" Bore 6" Stroke ☛ Model: SC 63 X 150 ; Bore: (2 1/2)" (63mm), Stroke: 6"(150mm); ☛ Port size: PT3/8 ; Piston port size: M16X1.5 ☛ Action Type: Double Acting, Rod Type: Single Rod ☛ Max Pressure: 1.0 MPa;Weight:1879g; ☛ Package:1 x Pneumatic Air Cylinder&2Pcs Fittings ➤ TECHNICAL PARAMETERS ◾ Model SC 63 ◾ Rod Type Single Rod ◾ Port size PT 3/8" ◾ Action Type Double Acting ◾ Bore 2.5 Inch（63mm） ◾ Piston port size M16X1.5 ◾ Max. theoretical force 280Kgf ◾ Max Pressure 1.0 MPa/145psi ◾ Weight 2370gr. / 5.2 lbs ◾ Package 1 x Pneumatic Air Cylinder
