Hosyond 4.0 Inches 480x320 TFT Touch Screen LCD Display Module SPI ST7796S Dr...

$ 14.89

UPC: 741421390416 EAN: 0741421390416 Package Dimensions LxWxH: 5.24x3.19x1.06 Inches Model Name: Msp4022 Ram Memory Technology: Ddr3 model: Msp4022 Connectivity Technology: Spi Included Components: 1 X 4.0 Inches Touch Screen, 1 X Touch Pen Model Number: B053 Compatible Devices: ['Arduino R3', 'Nano', 'Mega'] Processor Count: 1 Size: 4.0" Spi ISBN: 0741421390416 Operating System: Linux Weight: 0.22 Pounds Cpu Model Family: Armv7 Brand: Hosyond Part Number: B053

Description

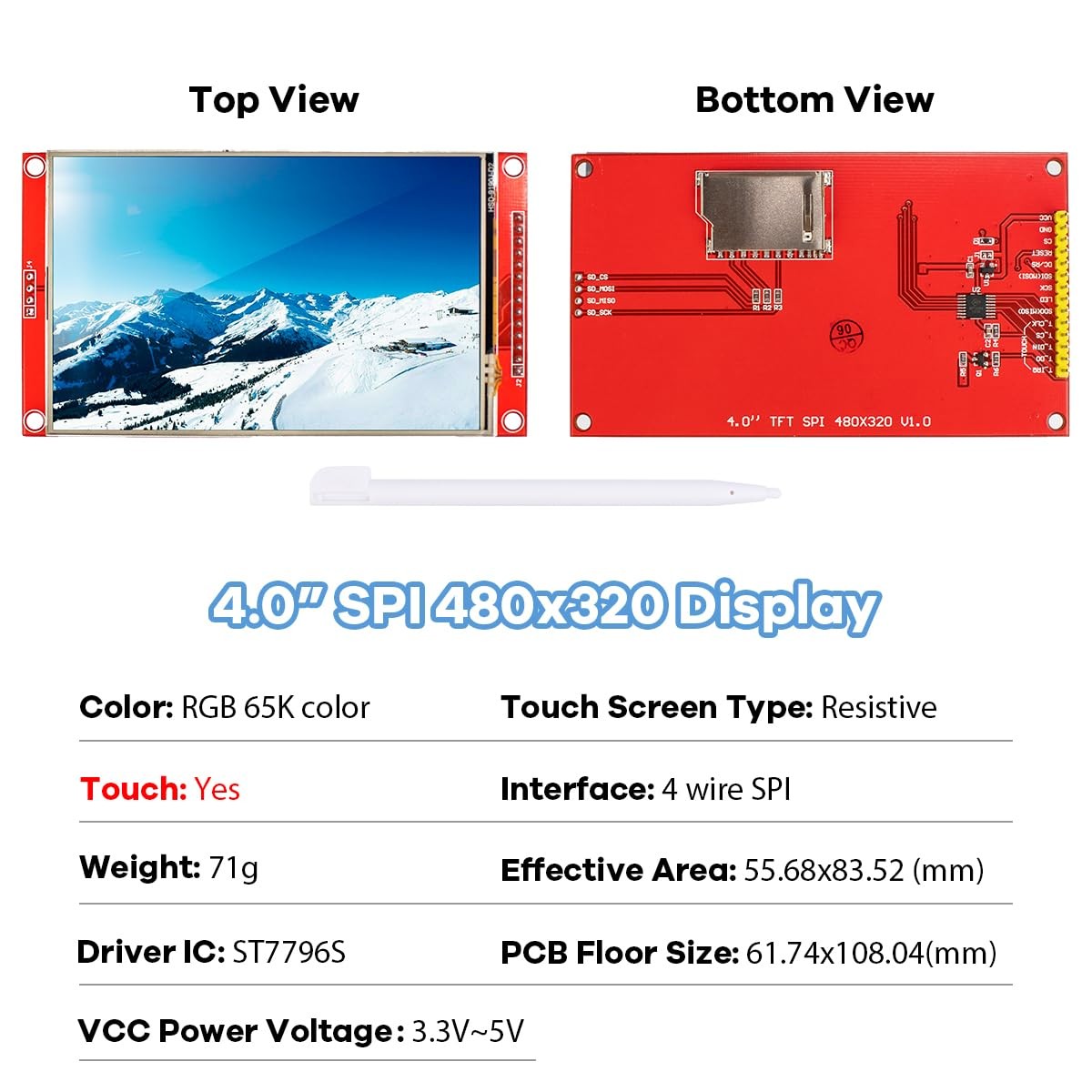

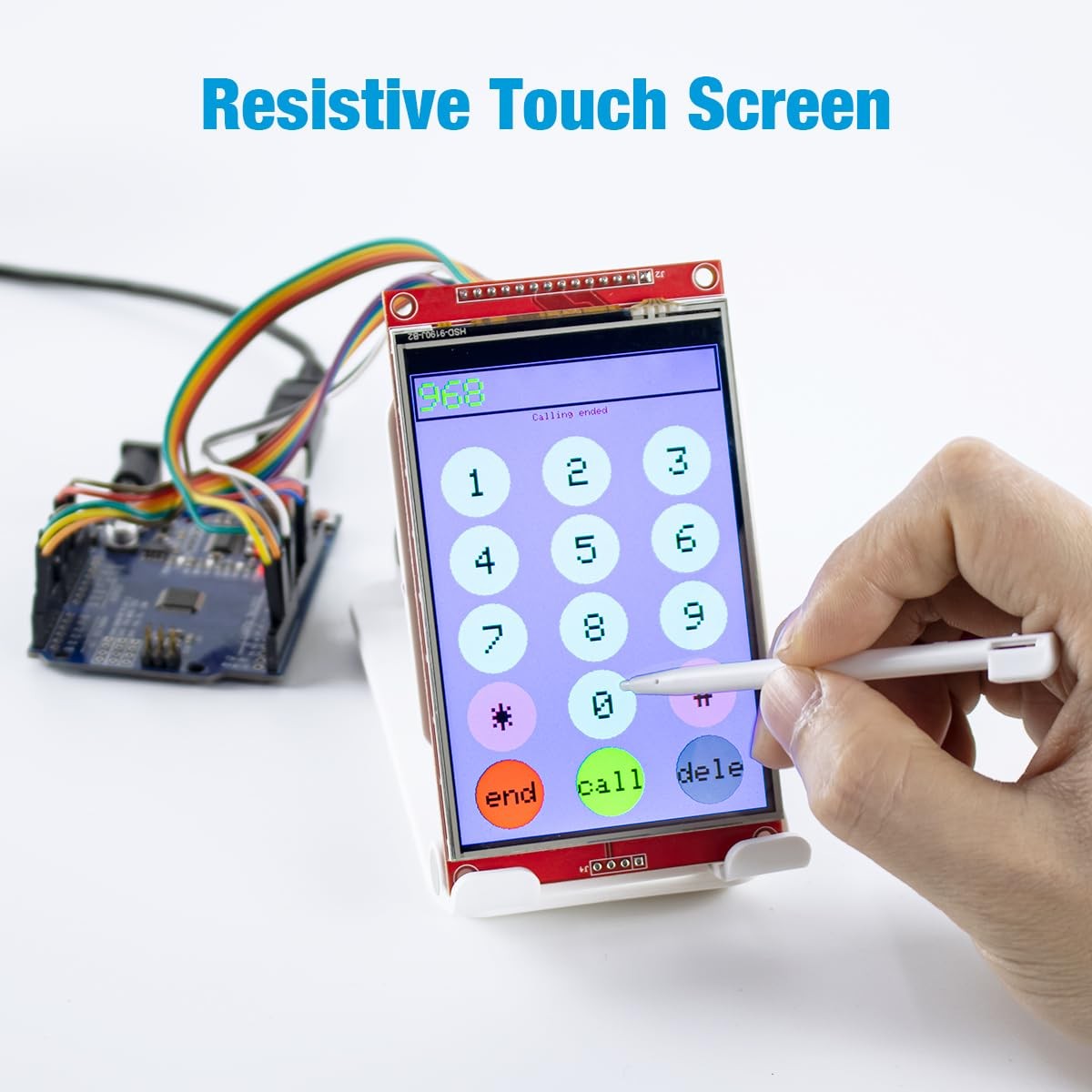

Hosyond 4.0 Inches 480x320 TFT Touch Screen LCD Display Module SPI ST7796S Dr.... Driver IC：ST7796S. 480X320 resolution, optional touch function. 1 4.0" SPI TFT LCD Display Touch Screen. Using the SPI serial bus, it only takes a few IOs to illuminate the display. Module Interface：4-wire SPI interface. 4.0-inch color screen,support 65K color display,display rich colors 480X320 resolution, optional touch function Using the SPI serial bus, it only takes a few IOs to illuminate the display Easy to expand the experiment with SD card slot Provide a rich sample program Military-grade process standards, long-term stable work Provide underlying driver technical support Display Color：RGB 65K color SKUhave touch screen：MSP4022 have no touch screen：MSP4023 Screen Size：4.0(inch) Screen Type：TFT Driver IC：ST7796S Resolution：480*320 (Pixel) Module Interface：4-wire SPI interface Active Area (AA area)：55.68x83.52 (mm) Module PCB Size：61.74x108.04(mm) Touch Screen Type：resistive touch screen Touch IC：XPT2046 VCC power voltage：3.3V~5V Power Consumption：TBD Rough Weight(Package containing)：71g Package included: 1*4.0" SPI TFT LCD Display Touch Screen 1* Touch Pen4.0-inch color screen,support 65K color display,display rich colors, 480X320 resolution, with touch function.Using the SPI serial bus, it only takes a few IOs to illuminate the display.Eeasy to expand the experiment with SD card slot and touch pen.Compatible with Arduino R3/Nano/Mega controller boards, which will improve your project operation.Provide a rich sample program and underlying driver technical support.
