FNIRSI 2D15P Digital Multimeter Oscilloscope Signal Generator 100Mhz 500MSa/s

Description

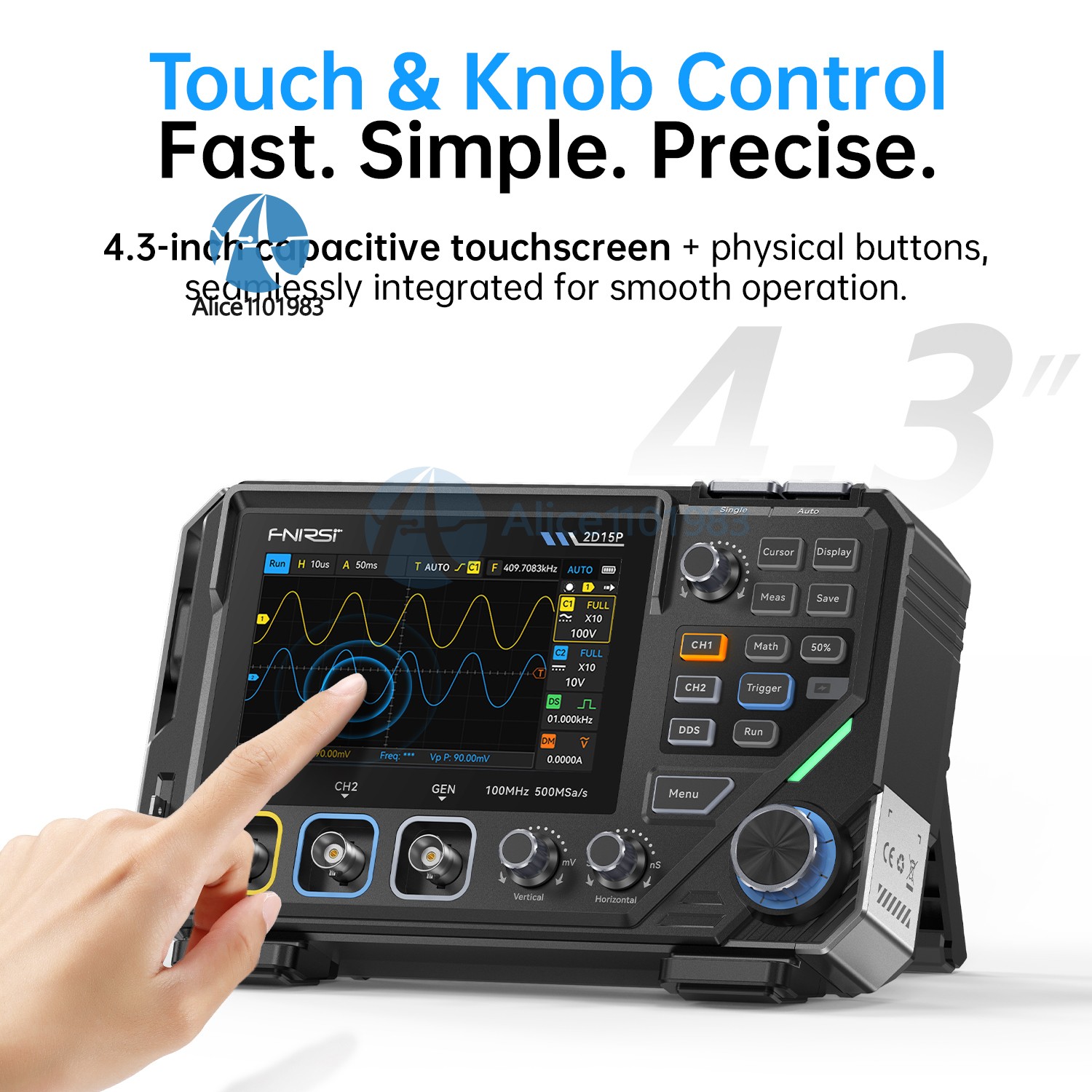

Visit store Items for sale About us Product Details Features: 1. Dual-channel 100MHz high-performance oscilloscope: Equipped with a sampling rate up to 500MSa/s and 100MHz analog bandwidth (50MHz per channel when both channels are active), featuring 10K/100K/1M memory depth to effortlessly capture complex and transient signals. 2. 4.3-inch capacitive touchscreen + physical buttons: Combines a 4.3-inch HD touchscreen with physical knobs for intuitive operation. Supports 128-level grayscale display with afterglow and color temperature adjustment for enhanced waveform viewing, enabling clear and intuitive waveform visualization. 3. Built-in 10MHz Signal Generator: Outputs 9 waveform types including sine, square, triangle, DC, noise, and step signals. Adjustable amplitude and duty cycle make it ideal for circuit simulation and testing applications. 4. Integrated True RMS Multimeter: 4½-digit (20,000 counts) true RMS measurement. Supports AC/DC voltage and current, resistance, capacitance, temperature, diode, and continuity testing—a versatile all-in-one tool. 5. Portable Design with Smart Features: Built-in 5000mAh rechargeable battery with Type-C fast charging. Includes auto power-off, screen brightness control, audible/visual alarms, self-calibration, waveform screenshot saving, and USB data export. Product Specifications Product Name: 3-in-1 2CH 100MHz Fluorescent Oscilloscope Model: 2D15P Screen: 4.3-inch capacitive touchscreen Battery: 5000mAh rechargeable lithium battery Power Supply: Type-C input (12V/1A fast charging) Operation: Touch + Knob + Physical Buttons Display: 128-level grayscale, color temperature, persistence Dimensions: 196mm × 129mm × 57mm Oscilloscope Channels: Dual Sampling Rate: 500 MSa/s Analog Bandwidth: 100 MHz Storage Depth: 10K, 100K, 1M Input Impedance: 1MΩ Time Base Range: 5ns to 50s Vertical Sensitivity: 10mV to 10V/div Maximum Measured Voltage: 800V (X10 range) Trigger Mode: Auto, Normal, Single Trigger Type: Rising Edge, Falling Edge, Both Edges Display Mode: Points, Vectors, Color Temperature Coupling: AC/DC Afterglow: min/2s/5s/10s/20s/50s Operations: 6 basic operations Waveform screenshot saving: Supported Waveform export: Supported Cursor measurement: Supported Signal Generator Frequency: 0-2MHz (10MHz for sine wave) Amplitude: 0.1-3.0Vpp Duty cycle: 0-100% Multimeter DC Voltage: 1.9999V/19.999V/199.99V/1000V AC Voltage: 1.9999V/19.999V/199.99V/750.0V DC Current: 19.999mA/199.99mA/1.9999A/9.999A AC Current: 19.999mA/199.99mA/1.9999A/9.999A Resistance: 19.999MΩ/1.9999MΩ/199.99KΩ/19.999KΩ/1.9999KΩ/199.99Ω Capacitance: 999.9μF/99.99μF/9.999μF/999.9nF/99.99nF/9.999nF/9.999mF/99.99mF Diode: √ Continuity: √ Shipping List: Main Unit*1 P6100*2 Test Leads*1 USB-A to Type-C Cable*1 BNC to Alligator Clip Cable*1 User Manual*1 Payment Method Shipping Policy Returns & Refund Policy Feedback Payment Method EBAY Managed Payment. But we only Accept your Ebay Address , please Make sure it's 100% right. Payment must be received in 5 business days of auction closing. Please leave note for your special request (e.g. Colors or Size) in PayPal when you pay the order. Any special request cannot be accepted after 24 hours of payment, because most of orders will be processed instantly and same day dispatched. Shipping Policy 1. We only ship to the confirmed address provided by eBay. please make sure your ebay address is 100% matches the address you would like us to ship to. If not, please let us know before we sent you the package, or we will not be responsible for any loss. hope you could understand. 2. Orders will be processed instantly and dispatched within 1-3 business days except hoilday, so we do NOT accept any email/message note after you place orders. 3. All package need to wait 30 days,Please take care it.Less than 30 days,we can't take a refund. Returns & Refund Policy All package need to wait 30 days (US only n eed 7-10 days) , Please take care it.Less than 30 days,we can't take a refund . If the item is defect when you receive it or you are not satisfied with it, please return it within 14 days for a replacement or money back. But the items must be back in factory condition. Please keep in touch with us and double check the return address before you return it. If is item is defective in 12 months, you can return it to us. We will send you a new replacement after receiving the defective item. Feedback We maintain high standards of excellence and strive for 100% customer satisfaction! Feedback is very important to us. We request that you keep in touch with us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily address your concerns.
