DIY Mini Spot Welder 8-24V with Voltmeter for 18650 Lithium Battery Assembly
$ 16.35
Description

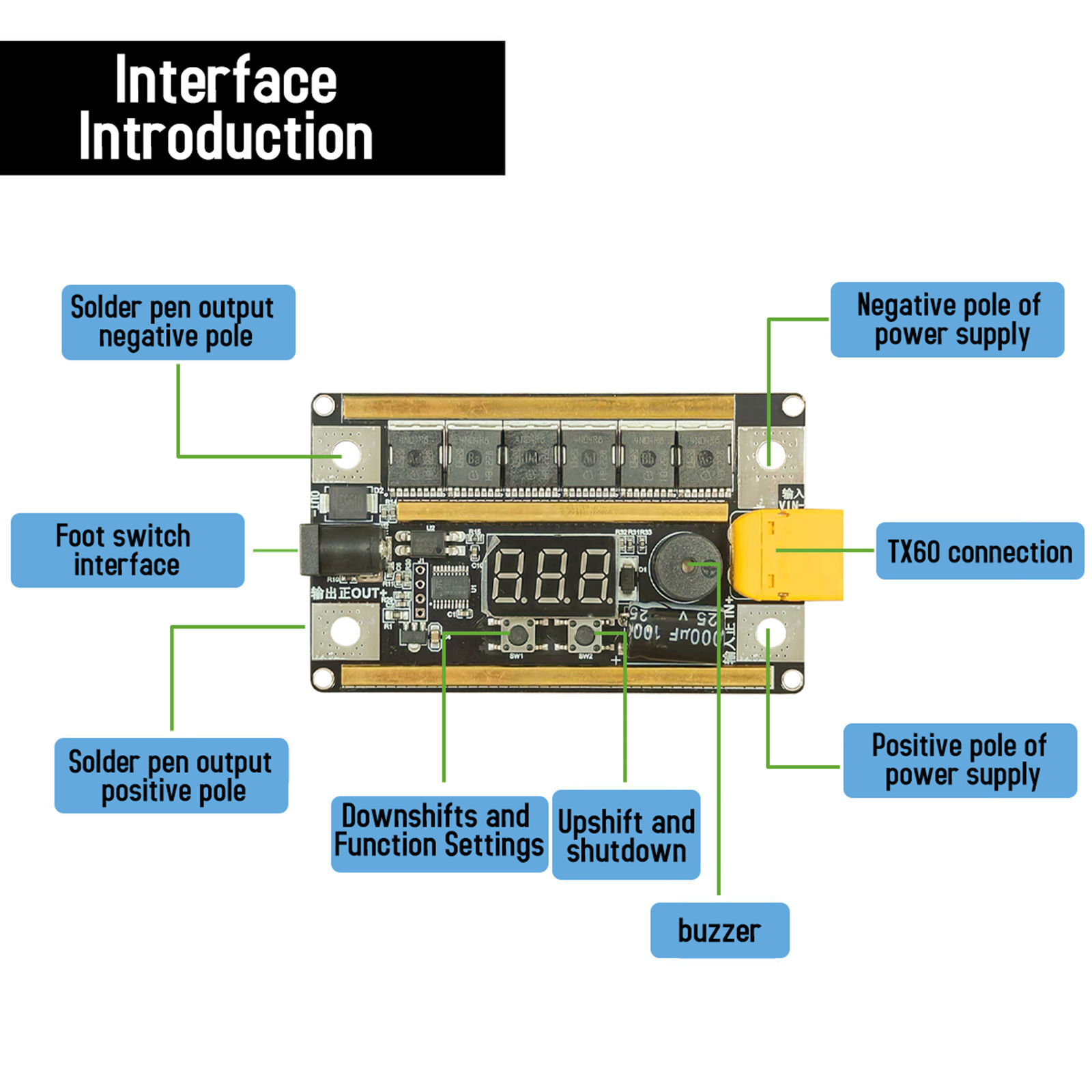

NEW-00023 DIY Mini Spot Welder Machine 8-24V Voltmeter Parts For 18650 Lithium Battery PRODUCT DESCRIPTION Features: Adopt 6pcs MOS tube, the peak current is up to 1800A, support 0.1-0.2mm nickel soldering piece, the solder joint is firmer and more beautiful. The high-precision power output design with 99 levels of output power can be adjusted to achieve more accurate welding, suitable for continuous welding of nickel plates and thousands of points on nickel plates. It has the function of displaying the real-time level position of the 3-digit digital tube, which can not only display the current level position, but also detect the battery voltage to enhance the fun of spot welding. When in standby, the digital tube will alternately display the level position and power supply voltage every second. When the display shows: d+ two digits, it means that it is in the level display state; when the display shows: 3 digits (such as 12.6), it means that the power supply voltage is: 12.6V voltage. 3 working modes are designed, which can be switched between normal power mode, enhanced power mode and super power mode. Specifications： Working voltage: 8-24V Working current: <20mAh Peak welding current: up to 1800A Standby power consumption: <0.5mAh Welding thickness: nickel sheet, 0.1-0.2mm Limit temperature: 175°C Package include: 1 set of Spot Welder Kit Note: Due to manual measurement, please allow 1-3 cm error, thank you. Due to screen and other objective reasons, there may be a certain color difference, please understand. Shipping Contact Us Our products have been sent to the US warehouse. All items will be shipped via WINIT CORPORATION. In 2-5 working days, you will receive your items. Thank you and have a nice day. If you have any question about us or items, please contact us, we will reply it as soon as possible. Shipping Our products have been sent to the US warehouse. All items will be shipped via WINIT CORPORATION. In 2-5 working days, you will receive your items. Thank you and have a nice day. Contact Us If you have any question about us or items, please contact us, we will reply it as soon as possible. PaymentShippingReturn policyAbout usContact us Copyright © - Tongtool All rights reserved | Design:Tongtool
