DC 200 Amp Breaker, 500V Battery Disconnect Switch for Main Power Station, UP...

$ 36.27

Lens Color: 200 Amp model: Dh M1X 2P 200A Color: White Part Number: Usa-Dhm1X-2P-200A Included Components: Arc Barrier Package Dimensions LxWxH: 8.11x5.71x4.45 Inches Mounting Type: Surface Mount Current Rating: 96.88 Number of Poles: 2 Voltage: 500.0 Ships Globally: Yes Item Package Quantity: 1 Circuit Breaker Type: Standard Material: 2 Pole Style: 200 Amp Weight: 3.4 Pounds Wattage: 40.0 Model Number: Dh M1X 2P 200A Brand: Dihool

Description

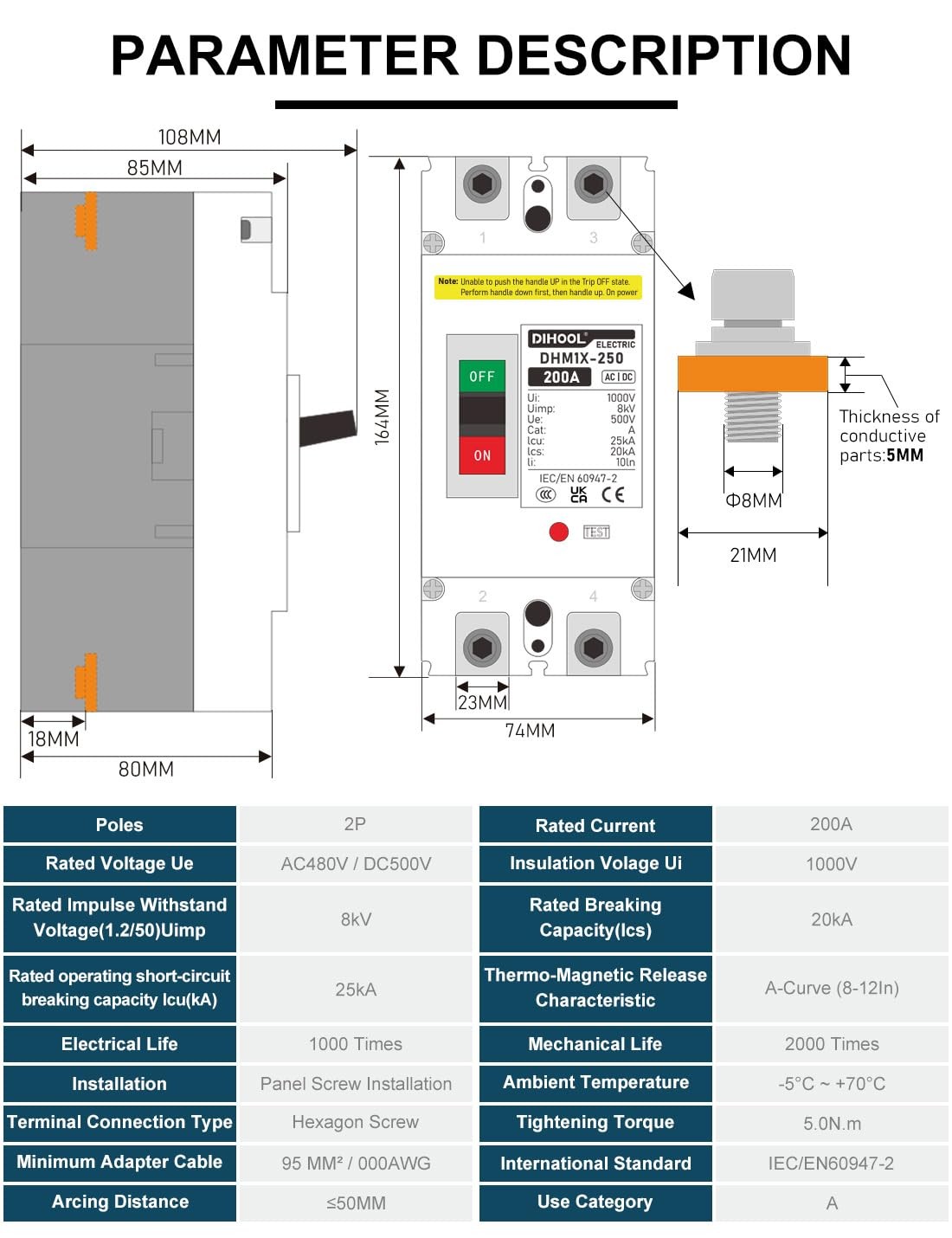

DC 200 Amp Breaker, 500V Battery Disconnect Switch for Main Power Station, UP.... Function: Thermal Magnetic Trip, circuit overload protection, isolation circuit, circuit short circuit protection. Molded Case Circuit Breaker Rated Voltage 500V, 200AFunction: Thermal Magnetic Trip, circuit overload protection, isolation circuit, circuit short circuit protection30% silver content in moving contacts, 45% silver content in stationary contactsWorking voltage: DC 12V~500V AC 90~480V short-circuit breaking capacity 25kASize:164MM x 74MM x 108MM, It needs to be installed on the panel through screwsSuitable for DC application such as photovoltaic / UPS / battery / Datacenter etc.
