BZBGEAR 16x16 4K UHD HDMI 2.0 Matrix Switcher w/ Audio De-embedding and Routing

Description

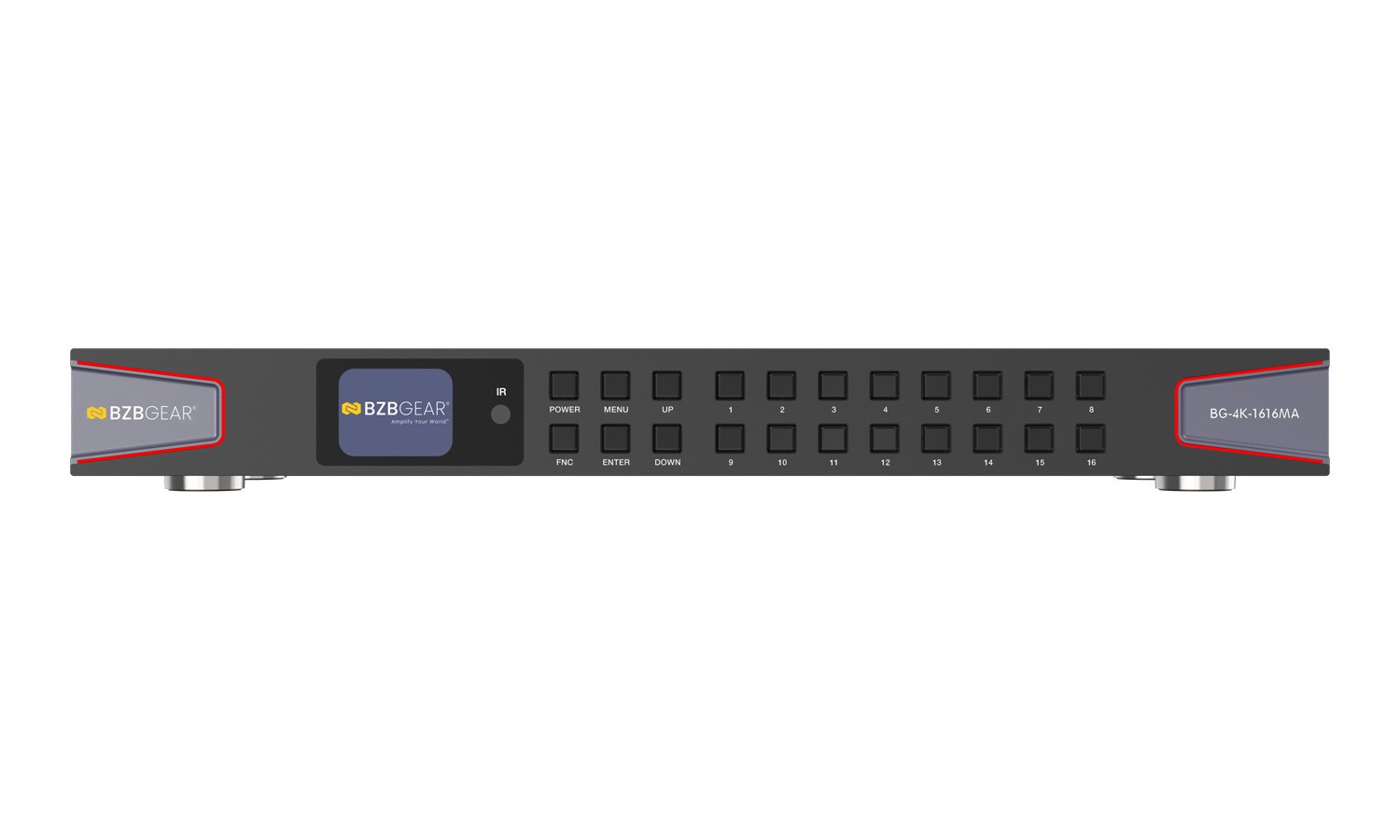

eBay Messages Overview Overview Features-in-Depth ProGear Product Line Overview The BG-4K-1616MA 4K HDMI matrix switcher is designed to manage up to sixteen HDMI 2.0 inputs and sixteen HDMI 2.0 outputs, enabling the seamless distribution of multiple HDMI sources to various displays. Whether you need to switch between multiple sources or display a single source on all screens simultaneously, this matrix switcher offers the flexibility and control you need. Audio can also be independently routed. Experience professional-grade picture and audio quality with support for 4K resolutions and a wide range of high-quality audio formats. U.S.-Based Company BZBGEAR Control Software 5-Year Warranty ProGear Product Line Features-in-Depth Connectivity and Quality: The BG-4K-1616MA supports ultra-high resolutions up to 4K@60Hz 4:4:4 with HDR. With 18 Gbps of uncompressed bandwidth, HDMI signals are routed without any loss of quality. All HDMI ports on this matrix switcher are HDCP 2.2 compliant, ensuring compatibility with modern content protection standards. It also features auto-downscaling on all outputs to ensure compatibility with older displays. Furthermore, the BG-4K-1616MA supports Digital S/PDIF and Balanced audio output formats for versatile audio integration. Control: The BG-4K-1616MA offers multiple control methods including front panel controls, an IR remote control, RS-232, and TCP/IP (Web GUI). The included IR receiver allows for remote control operation even when the unit is hidden for a clean installation. Additionally, the full-featured web interface and control software, accessible via RS-232, enables users to adjust advanced settings such as EDID management, signal mapping, and network configurations. Control is also accessible on mobile phones, personal computers, and devices through the BG-SWITCH-CONTROL App by BZBGEAR, available for Windows, Mac, iOS, and Android. Audio Matrixing: This unit features advanced audio matrixing capabilities. The audio can be independently routed separately from the video signals. This feature provides flexible audio management options for a variety of installation scenarios. U.S.-Based Company BZBGEAR Control Software 5-Year Warranty ProGear Product Line U.S.-Based Company BZBGEAR Control Software 5-Year Warranty ProGear Product Line U.S.-Based Company BZBGEAR Control Software 5-Year Warranty Control App Included! Available for Windows, macOS, iOS, and Android Download from Microsoft Store Download on the App Store Get it on Google Play The image of the application may differ from the actual application depending on the device and the version of the application Video Features HDCP Compliant HDMI 2.0 (18Gbps) HDCP 2.2 (backward compatible with earlier versions) 4K Resolution Supports up to 4K@60Hz 4:4:4 with HDR Audio Matrixing The audio can be independently routed Control Options Front panel, IR, RS-232, and TCP/IP (Web GUI) controls EDID management Ensures seamless scaling for optimal display results HDR Support HDR, HDR10, and Dolby Vision pass-through Specification Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 Video Bandwidth 18Gbps Video Resolution Up to 4K60Hz 4:4:4 **All available resolutions are shown in the table below** Color Space RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 Color Depth 8/10/12-bit HDR Formats HDR, HDR10, HDR10+, Dolby Vision LLM, HLG Audio Formats HDMI IN/OUT LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD Audio Breakout (Optical Outputs) Up to LPCM/Dolby/DTS 5.1CH Audio Breakout (Analog Audio Outputs) LPCM 2CH (sample rate 32~192kHz) Connection Input ports 16x INPUT [HDMI Type A, 19-pin female] Video Output Ports 16x OUTPUT [HDMI Type A, 19-pin female] Audio Output Ports 16x AUDIO OUT [RCA] Control ports Network 1x TCP/IP [RJ45] Serial 1x RS-232 [D-Sub9] IR 1x IR EXT [3.5mm audio jack] Mechanical Housing Metal Enclosure Color Black Dimensions (W x D x H) 17in x 10in x 1.8in [440mm x 256mm x 44.5mm] Weight 11 lbs [4.9kg] Power Supply Input: AC 100 - 240V 50/60Hz, Output: DC 24V/5A (US/EU standard, CE/FCC/UL certified) ESD Protection IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) Power Consumption 99.6W (Max) Operating Temperature 32 - 104°F / 0 - 40°C Storage Temperature -4 - 140°F / -20 - 60°C Operating Humidity 20%~80% relative humidity, non-condensing Storage Humidity 10%~90% relative humidity, non-condensing HDMI Cable Length (IN / OUT) 4K60: 5m/16ft 4K30: 10m/33ft 1080P: 15m/49ft Note: The use of “Premium High Speed HDMI” cable is highly recommended. Support Resolution and Refresh Rates Resolution Category Supported Resolutions & Refresh Rates PC / VESA 640x480p60, 800x600p60, 1024x768p60, 1280x1024p60, 1360x768p60, 1440x900p60, 1440x1050p60, 1600x1200p60 SD 720x480i/p59.94, 720?576i/p50 HD (720p) 1280x720p50/59.94/60 Full HD (1080) 1920?1080i50/59.94/60, 1920x1080p23.98/24/25/29.97/30/50/59.94/60 UHD (3840x2160) 2160p23.98/24/25/29.97/30/50/59.94/60 DCI 4K (4096x2160) 23.98/24/25/29.97/30/50/59.94/60 View more View less Interfaces 1. LCD Screen: Display matrix switching status, input / output port, EDID, baud rate, IP Address, etc. 2. IR: IR signal receiver. Receiving the signal from the IR remote. 3. POWER Button & Indicator: Press the button to power on the device, and at this time the light is blue. Long-press the button for 3 seconds to enter the standby mode, and at this time the light is red. 4. FNC: Multi-function button. FNC + Number (1~16): Select the input source for all output channels. Number (1~16) means the input source (1~16). FNC + FNC + 1: Display IP address. FNC + FNC + 2: Display the baud rate of serial port. Note: The info above will disappear automatically in 3 seconds. 5. MENU / ENTER / UP / DOWN: Screen operation buttons. Take RESET, for example. 1. On the initial LCD display screen, press “MENU” button. There are OUTPUT SETTINGS/INPUT SETTINGS/AUDIO BREAKOUT/SETUP/FIRMWARE items to be selected. 2. Press the “UP/DOWN” button to select SETUP item. 3. Press the ”ENTER” button to enter into the next level. There are LCD ONTIME/BAUDRATE/NETWORK/REBOOT/RESET items to be selected. 4. Press the “UP/DOWN” button to select RESET item. 5. Press the “ENTER” button, and it will prompt to confirm. Now press “FNC” to continue, or press “MENU” to return.Note: Pressing the “MENU” button will return to the previous menu on any page. 6. MENU / ENTER / UP / DOWN: INPUT / OUTPUT (1~16) Buttons: Press a number (1~16) firstly to select an output channel, and then press a number (1~16) to select the corresponding input source. 7. AUDIO OUT (1~16): Digital audio output port, connected to an audio device such as speaker. 9. TCP/IP: TCP/IP control port, connected to PC or router with an RJ45 cable. 8. RS-232 Port: Connects to a PC or control system to control the matrix. 10. IR EXT: Connects to a 12V wideband IR receiver cable. If the IR receiver window of the unit is blocked or the unit is installed in a closed area out of infrared line of sight, the IR receiver cable can be inserted to the “IR EXT” port to receive the IR remote signal. 11. DC 24V: Connects to 24V/5A power supply. 12. GND: Connects the housing to the ground. 13. HDMI IN (1~16): HDMI signal input ports, connected to HDMI source device such as PC, DVD or set-top box with HDMI cable. 14. HDMI OUT (1~16): HDMI signal output ports, connected to HDMI display device such as TV or monitor with an HDMI cable. Connection Diagram Package Contents 1x BG-4K-1616MA 1x 24V/5A Power Adapter with US AC Power Cord 1x IR Remote 1x IR Wideband Receiver Cable (1.5m) 1x RS-232 Serial Cable (1.5m, male to female head) 8x Machine Screw (KM3*6) 2x Mounting Ear 1x User Manual Videos Why Choose BZBGEAR? BZBGEAR Warranty Expedited replacement service Hassle-free return process within 60 days for a full refund Free Shipping with Same-Day Dispatch* *Applies to domestic shipping only Other Information About Us About Us Delivering Audiovisual Solutions You Can Trust Since 2005! Located in Northern California, BZB Express has been a trusted supplier of Audio/Video and Broadcast Equipment since 2005. Our exclusive partnerships with highly regarded manufacturers enable us to offer the most competitive prices to dealers, resellers, commercial integrators, and end-users. BZB Express is built on a foundation of excellent service, dependable products, and efficient delivery. We aim to enhance your experience, whether you are shopping with us or seeking answers to your questions. We provide honest, unbiased information to help you make informed decisions when making a purchase. Shipping Shipping OUR "FIVESTAR" SHIPPING SERVICE GUARANTEE: Low cost Fast Processing Safe Packaging Tracking Number Quick Delivery The shipping table below serves as a general reference guide. All specific shipping details related to your purchase will be provided during checkout. Method Processing Time In Transit Time Total Time* FedEx Ground Within 24 Hrs (Mon-Fri) 4-7 Days (Mon-Fri) 5-8 Days FedEx Express Saver (3 Days) Within 24 Hrs (Mon-Fri) 3 Days (Mon-Fri) 3-4 Days FedEx 2nd Air Within 24 Hrs (Mon-Fri) 2 Days (Mon-Fri) 2-3 Days FedEx Overnight Within 24 Hrs (Mon-Fri) 1 Day (Mon-Fri) 1-2 Days *Estimated delivery time. It may vary, especially during peak holiday periods. Please note: - All orders are processed and shipped on business days only, Monday through Friday, excluding major holidays. - Orders placed on Saturday and Sunday will be processed on the following business day. - We ship to PO Boxes and APO/FPO addresses. International Customers: We offer shipping via USPS, FedEx, and DHL for our international customers. All shipping details specific to your purchase will be provided during checkout. International Buyers Please Note: The buyer is responsible for any applicable import duties and local taxes. If you have any questions, please check with your customs office before making a purchase. Contact Us Contact Us Hours of Operation: Monday - Friday 8:00 AM - 5:00 PM PST If you have any questions or concerns about our products or your order, please contact us via eBay messages.
