AC Miniature Circuit Breaker, 100 Amp 120V/240V 2 Pole DIN Rail Mount Circuit Br
$ 12.42
Description

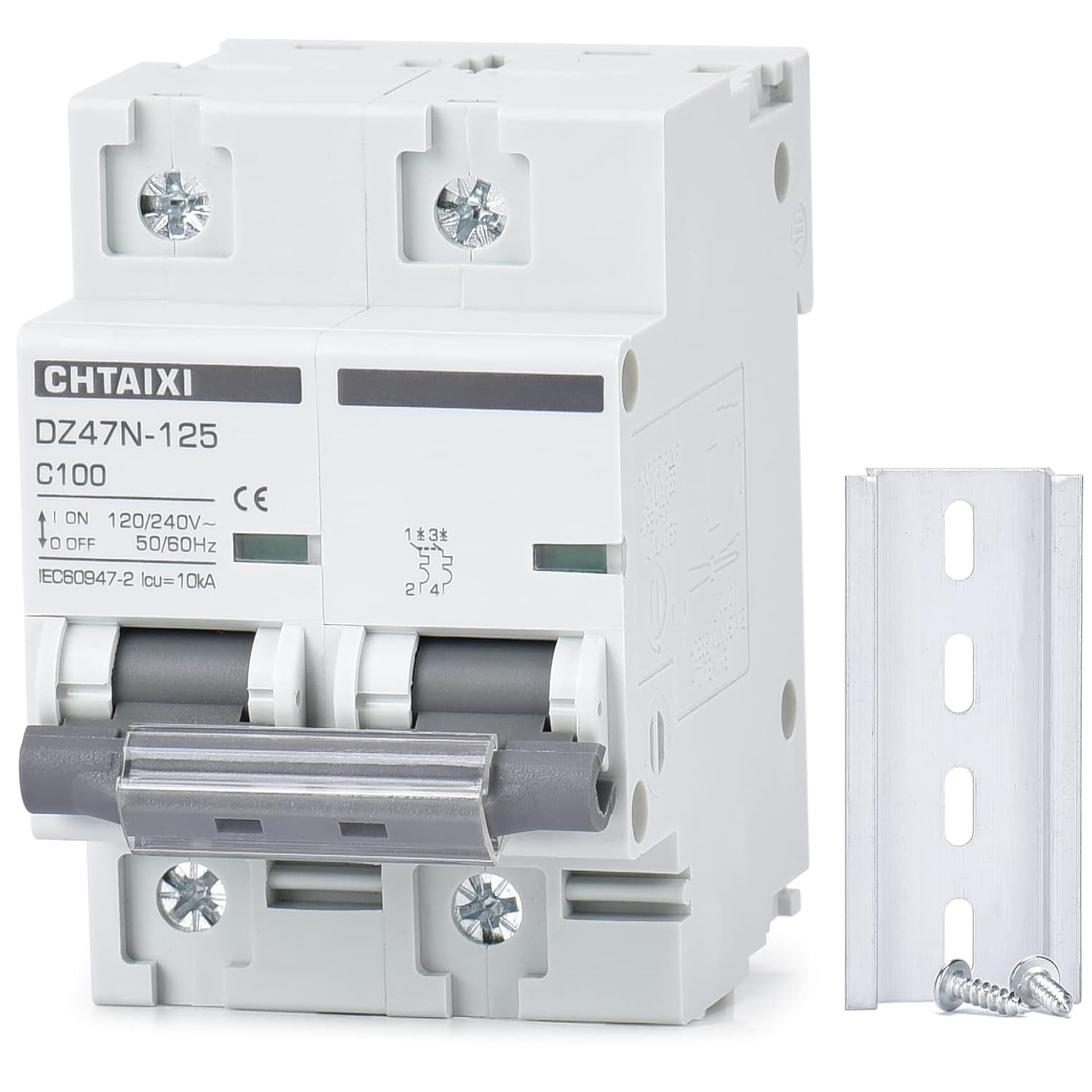

AC Miniature Circuit Breaker, 100 Amp 120V/240V 2 Pole DIN Rail Mount Circuit Br. AC Miniature Circuit Breaker, 100 Amp 120V/240V 2 Pole DIN Rail Mount Circuit Breaker, Thermal Magnetic Trip, Solar AC Disconnect Switch MCB 2P C100. Mounting Type DIN Rail Mount. INSTALLATION: 35mm DIN rail mount, screw clamp wires (Soft silicone wire needs to crimp fixed the wire end with copper crimp first). Store New Arrivals Add to Favorite View Feedback Contact AC Miniature Circuit Breaker, 100 Amp 120V/240V 2 Pole DIN Rail Mount Circuit Breaker, Thermal Magnetic Trip, Solar AC Disconnect Switch MCB 2P C100 Description Part Number 47N125 Style 100 Amp Current Rating 100 Amps Mounting Type DIN Rail Mount Circuit Breaker Type Standard Model 2 Pole Number Of Poles 2 FUNCTIONS: Used to protect 110V 120V 220V 230V AC circuit from overload and short circuit damage, and can also be used for control and isolation. CURVE C: Magnetic trip range 5-10 times rated current. QUALITY: Silver alloy contacts, flame retardant material shell, color indicator. APPLICATION: Can be used in solar ac systems, RV, home circuits, or other 50/60Hz AC systems. INSTALLATION: 35mm DIN rail mount, screw clamp wires (Soft silicone wire needs to crimp fixed the wire end with copper crimp first). Product description Caution Make sure the wire terminals are connected in the Middle of the Breaker Terminal Clamps and connected tightly enough not to pull out easily. Soft silicone wires need to be fixed with copper crimp to fix the wire ends first. Specifications Product type: AC Miniature Circuit Breaker Rated operational voltage: 120V / 240V AC Rated current [In]: 80A / 100 A / 125 A (optional) Poles: 1P / 2P (optional) Trip unit technology: Thermal-magnetic Curve code: C Breaking capacity: Icu=10 kA Ics=7.5 kA Uimp: 6 kV Mechanical durability: 10000 cycles Electrical durability: 4000 cycles Operating temperature: -13°F(-25℃) ~ 140°F(60℃) Mounting support: 35 mm DIN rail Tightening torque: 3.5 N.m Standard: IEC60947-2 Package includes 1 x AC miniature circuit breaker (1P NO DIN rail, 2P with 1 x DIN rail and 2 x screws) Quality Products Quality Plastic Shell Flame retardant material, sturdy and durable. Tunnel Terminal Large space, put the wire end in the middle of the terminal hole. Silver Alloy Contacts Reduce the wear of the contacts. Improve electrical durability. Installation DIN Rail Install the 35mm DIN rail horizontally in a stable environment. Installation Hang the circuit breaker slot on the DIN rail. Push the lower end of the circuit breaker into the DIN rail. Dismounting Use a slotted screwdriver to pull the snap down. Remove the circuit breaker from the DIN rail.
