635MM/ 25'' Electric Cold and Hot Laminator Laminating Machine 110V Double-sided

Description

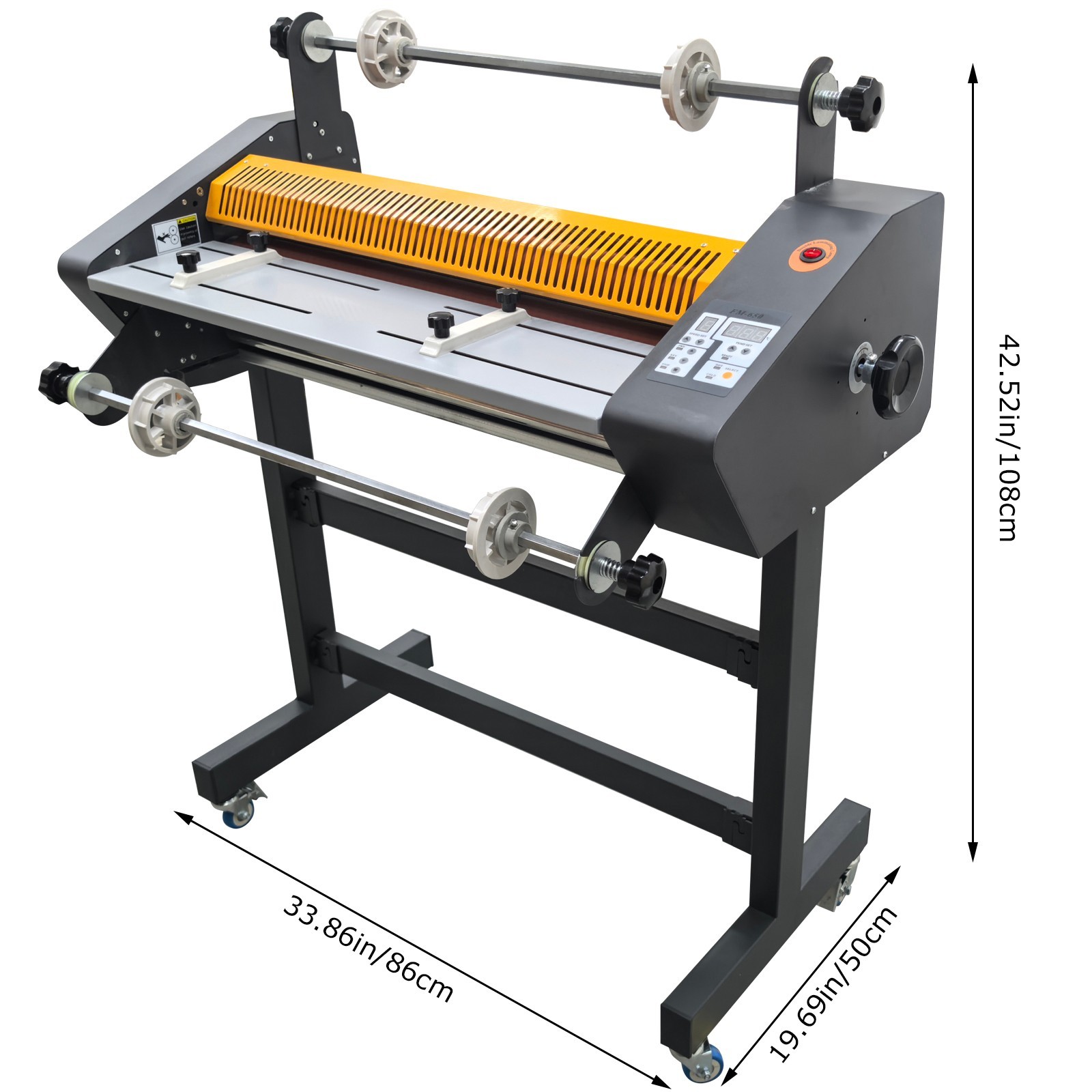

PreAsion® 635MM/ 25'' Electric Cold and Hot Laminator Thermal Laminating Machine 110V Double-sided Product Overview: The double-sided laminator is a professional multifunctional laminating machine specifically designed for cold and heat laminating operation. The laminating machine has a double-sided heating function, thereby greatly shortening the laminating time, remarkably improving the working efficiency and thoroughly solving the crimp problem of conventional single-sided laminating operation. The laminating machine has the efficient heat laminating capacity and the lossless cold laminating capacity, so it is an ideal choice for professional users pursuing high efficiency, high quality and operating diversity and individual uses with high requirements. Product Parameters: Model FM-650 Maximum laminating width 635mm (25'') Maximum laminating thickness 5mm (0.2'') Maximum laminating speed 3000mm/min Maximum laminating temperature 170˚C Power supply 110V/60Hz Power 1600W Motor power 30W Machine size 86x50x108cm (33.86''x19.69''x42.52'') Net weight 59kg (130LB) Number of rubber rollers 4pcs Diameter of heating rubber roller 55mm (2.17'') Diameter of discharging rubber roller 45mm 45mm (1.77'') Specification of film core 1'' and 3'' Attention: 1. Keep hands, long hair, loose clothing and articles like ties or necklaces away from the rollers to avoid entanglement and scalds. 2. Be sure to close the protective cover before the machine works. 3. Do not touch the cover, heating rollers and heating parts while the machine is working, so as to avoid accidents and scalds. 4. Never use any abrasive or sharp metal material to rub the roller, because it may damage the rubber roller surface. Product Features: The precision operation panel is adopted to achieve intelligent control, button operation and digital display, the speed setting, temperature setting, rotation direction selection and laminating mode selection are combined into a whole, ensuring the temperature and speed can be freely adjusted, the advance/retreat/stop can be easily controlled, and the cold laminating mode and heat laminating mode can be freely selected to meet various laminating requirements. The four rubber rollers are made of thickened high-quality rubber, have smooth and flat appearances and high laminating performance. The rubber rollers are firm and durable, and are not prone to deformation after long-term use. The advanced rubber roller interior heating technology is used, so the rubber rollers are resistant to high temperature, and the heating efficiency is greatly improved. The laminating machine is equipped with a hollowed protective cover, achieving safety protection and good heat dissipation. By means of the hollowed design, the operator can observe the laminating condition at any time, hands can be prevented from being pinched and scalded by the heating rubber rollers. The protective cover can be opened and closed effortlessly, so it is convenient and practical. The paper baffles on the two sides can effectively limit and position the materials in the laminating process, ensuring paper feeding is stable and free of deviation. The paper baffles can be easily moved and fixed in the holes to adapt to different material specifications and sizes, so the practicability and adaptability are greatly enhanced, and the smooth laminating operation can be well guaranteed. The double-sided laminating switch is designed for control over the double-sided laminating operation. Lamination of the obverse side and reverse side can be accomplished at the same time through one-time feeding, so the laminating efficiency is greatly improved, the degree of automation is higher, the uniform heat and pressure are provided to ensure the stress balance, and the quality and consistency of finished products are improved. The rubber rollers can be controlled by the handwheel to be easily lifted and pressed in the working process, so the operating safety and convenience are effectively improved, and the laminating quality and consistency are greatly enhanced. The handwheel is simple in structure, low in maintenance cost and fault rate and high in mechanical reliability and achieves high flexibility, safety, durability and economy. The film rolls with 1'' and 3'' film cores are effectively supported by the film roll supporting rods, reliably fixed by the fixing clamps and properly adjusted by the adjusting knobs on the two sides, thereby ensuring the films are smoothly fed and adhere to the materials, the deviation, bubbles and wrinkles can be effectively avoided, and the good laminating effect is achieved. The universal wheels with brakes are stably installed at the bottom of the supporting frame, making the laminating machine move flexibly and effortlessly. By means of the brake design, the laminator can be stably fixed at the designated position and well adapt to different working environments, and the practicability is greatly improved. Operation Method: 1. Install the film rolls on the supporting rods, and fix the film rolls properly. 2. Connect the machine to the 110V power supply with reliable grounding, and turn on the power switch. 3. Select the cold/hot laminating mode, set the laminating speed and temperature, and begin to conduct laminating operation. 4. Adjust the film rolls and the corresponding parameters according to the laminating effect. 5. Clean the machine after the laminating operation is accomplished. Application: As a multifunctional laminator, the electric double-sided laminating machine can conduct cold and heat laminating operation efficiently, achieves the perfect combination between the cold/heat laminating films with 1’’ and 3’’ film cores and various materials such as paper, books, pictures, photos and documents, and is suitable for the advertising and printing industry, the art field, the education and office industry and other industries with the laminating requirements. Item Number (120122): 635MM / 25'' Electric Cold and Hot Laminator Laminating Machine 110V Double-sided 新建网页 1 Shipping & Handling Details Default Shipping Cost or Free Shipping Information: Default shipping cost or free shipping service is only for the lower 48 United States by UPS Ground or USPS. Other areas or needs other shipping ways, please contact us. Buyers from Guam, Puerto Rico, Virgin Islands, American Samoa, Alaska, Hawaii, PO Boxes, APO/FPO addresses or other countries/areas, there WILL be extra shipping costs, please contact us for more detailed information. Please make sure your address is valid for both UPS and USPS services. Any costs incurred because of incorrect or undeliverable address should be undertaken by buyer. Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends & public holidays. Sales tax / Customs duties: Any sales taxes or Customs duties are not included. If came out, they must be undertaken by the buyer. Sales Tax of 8% will be applied for orders shipped within the state of California. Damage In Shipping: Email or call us First! We will work with you to get the case resolved in the fastest method. Return / Refund If you are not 100% happy with your purchase, please contact Us. Please don't directly opened a request or case without informing us, or else, we will do some discounts on the warranty and other sales-services later on. Hope for your understanding. Returns & Exchanges All returns must be made within 30 days of delivery date. Items must be in new, unused condition, with all original materials included with the shipment. A partial refund may be applied for opened or damaged items, depending on the condition. Items returned under the buyer s remorse: The return shipping fee must be covered by the buyer; The original shipping cost will also be deducted from the refund. 15% restocking fee of the items purchase price will be charged. Returns that are the result of our seller's error: Buyer will receive a full refund of the item as well as shipping charges All returns require a RA (Return Authorization) number that will be given by our seller. Please contact with us at first for more details. Defective & Damaged Products If product was received damaged or not as described, please send us some pictures or videos, so we could well understand your problem, then solve them for you ASAP. Besides, it's much helpful for us to claim with UPS, remind our related department to pay much more attention to packaging later on. Hope for your understanding. Replacement or refund of defective or damaged products can only be returned in exchange for the exact same product, or else, the purchase price will be refunded back to your original payment method. If an item is received damaged, customer service must be contacted within 7 days of receiving your item. All returns require a RA (Return Authorization) number as above. Payment eCheck Issues: Payments via eCheck do not clear immediately. Usually you will wait 5-7 days after checkout for it to clear. Then we will arrange shipments for you. Warranty & Feedback 6 months' warranty for the machines, not for the consumables. We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost. Any warranty shipping cost to us is responsible by buyer. Any shipping cost to buyer is responsible by the seller. We committee to the customer satisfaction and want to bring you the best purchase experience. If there is any problems, please contact us ASAP. If not, please leave us a positive feedback as it's very important for us. Thanks very much. On Dec 1, 2025 at 17:57:48 PST, seller added the following information:
