5PCS USB 3.1 Type C Panel Mounting Waterproof Connector, IP67 24 Pins Female ...

Description

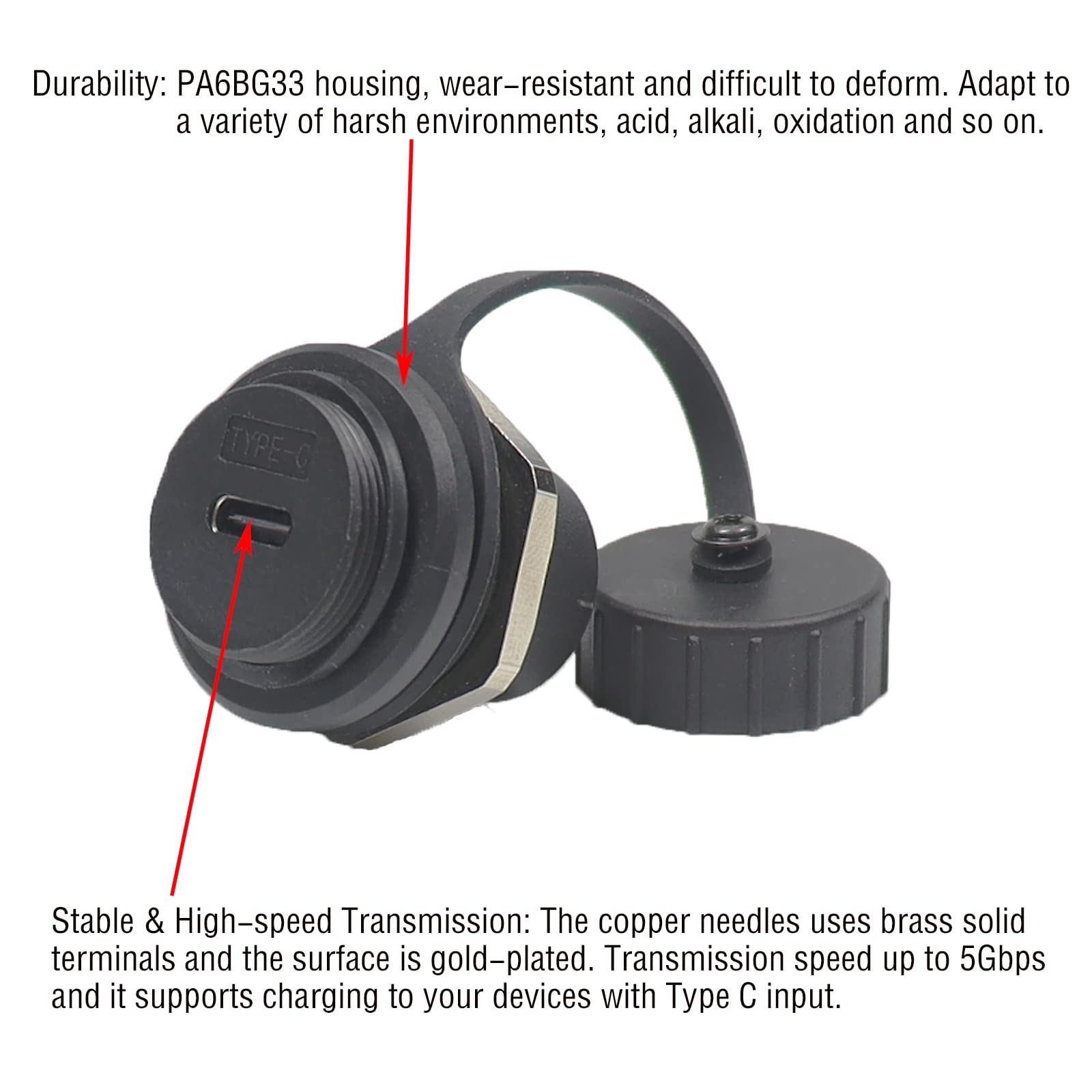

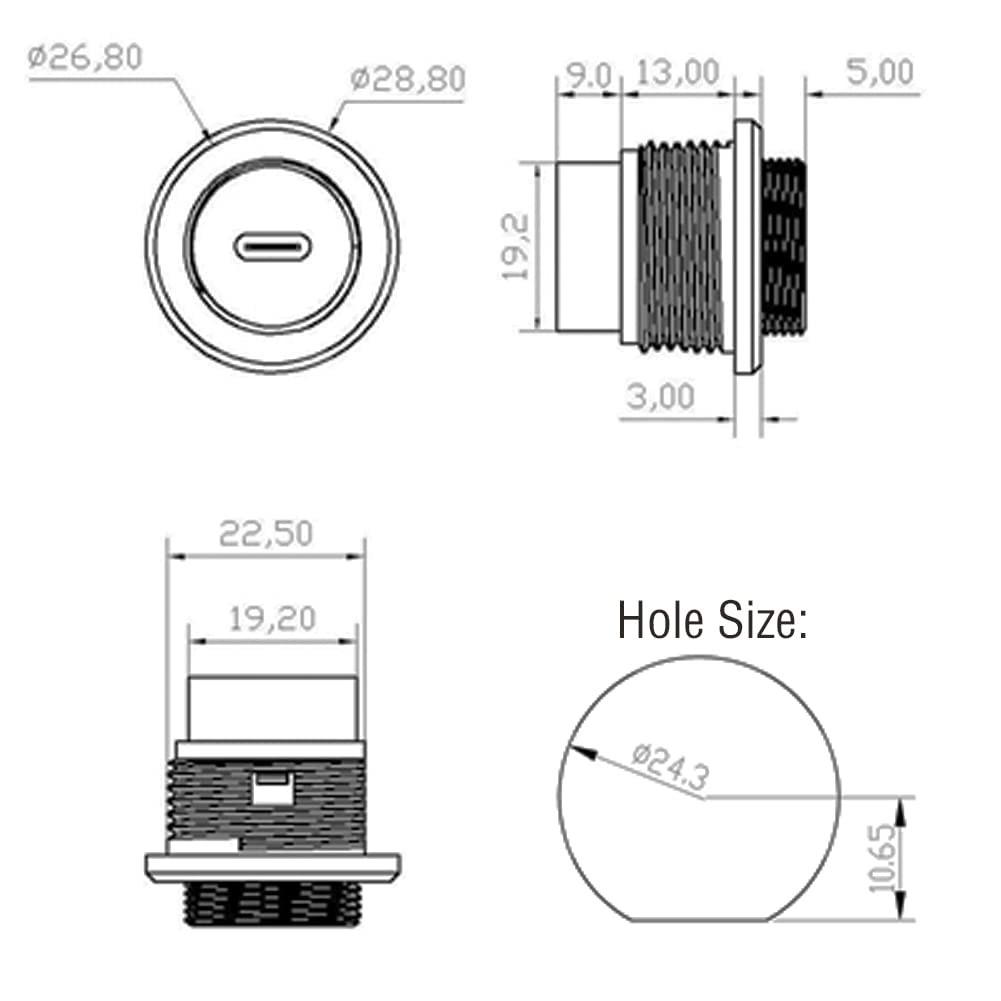

The TYPE C signal panel connector is a Female/Female Couple. Using the standards based TYPE C connection system insures compatibility with existing hardware. The coupler maintains the continuity offering protection from EMI/RFI interference. Specifications: Number of cores: 24 PIN Waterproof rating: IP67（with Waterproof/Dust Cap） Connection type: TYPE-C Flame retardant rating: UL94V-0 Connection method: plug type Case wall thickness: Threaded type: >2mm, through-hole type: 0.3~7mm Mounting Hole Size: 24mm Thread size: 24*1.5 Connector transmission classification: USB3.1 Transmission speed range: 5Gbps Electrical parameters: Rated current: 5A Rated voltage: 12V Insulation resistance: ＞500MΩ Compressive strength: AC1000V 50HZ or 60HZ for 1 minute Contact resistance: ＜10MΩ Material: Shell: PA6BG33 Socket contact pin: phosphor copper Contact pin gold plating thickness: 6u inch Waterproof rubber ring: silicone Environmental conditions: Working temperature: -40～120Celsius Storage temperature: -25～85Celsius Atmospheric pressure: 86～106kPa Relative humidity: ≤90% RH Tips: When the transmission speed is only 30Mbps, please insert the data cable in reverse, and the transmission speed will reach the expected 5Gbps. Package Included: 5x Waterproof TYPE C Connector 5x Waterproof/Dust Cap Cover Usage: USB Type C 3.1 Female to Female panel mount connector with waterproof kit. Provides feed-through USB connectivity for data and charging in industrial environments. Durability: PA6BG33 housing, wear-resistant and difficult to deform. Adapt to a variety of harsh environments, acid, alkali, oxidation and so on. Stable & High-speed Transmission: The copper needles uses brass solid terminals and the surface is gold-plated. Guarantee the stability of the current. Transmission speed up to 5Gbps and it supports charging to your devices with Type C input. EASY INSTALLATION: No soldering, no installation tools, just plug the standard type-c head directly for quick installation. Quality Assurance: Professional waterproof connector manufacturer. The product undergoes rigorous inspection before leaving the factory. If you are not satisfied with the product, please feel free to contact us.
