3 Way Pneumatic Manifold Air Distribution Block, G1/2 Supply Port, G1/4-Inch Out
$ 12.02
Description

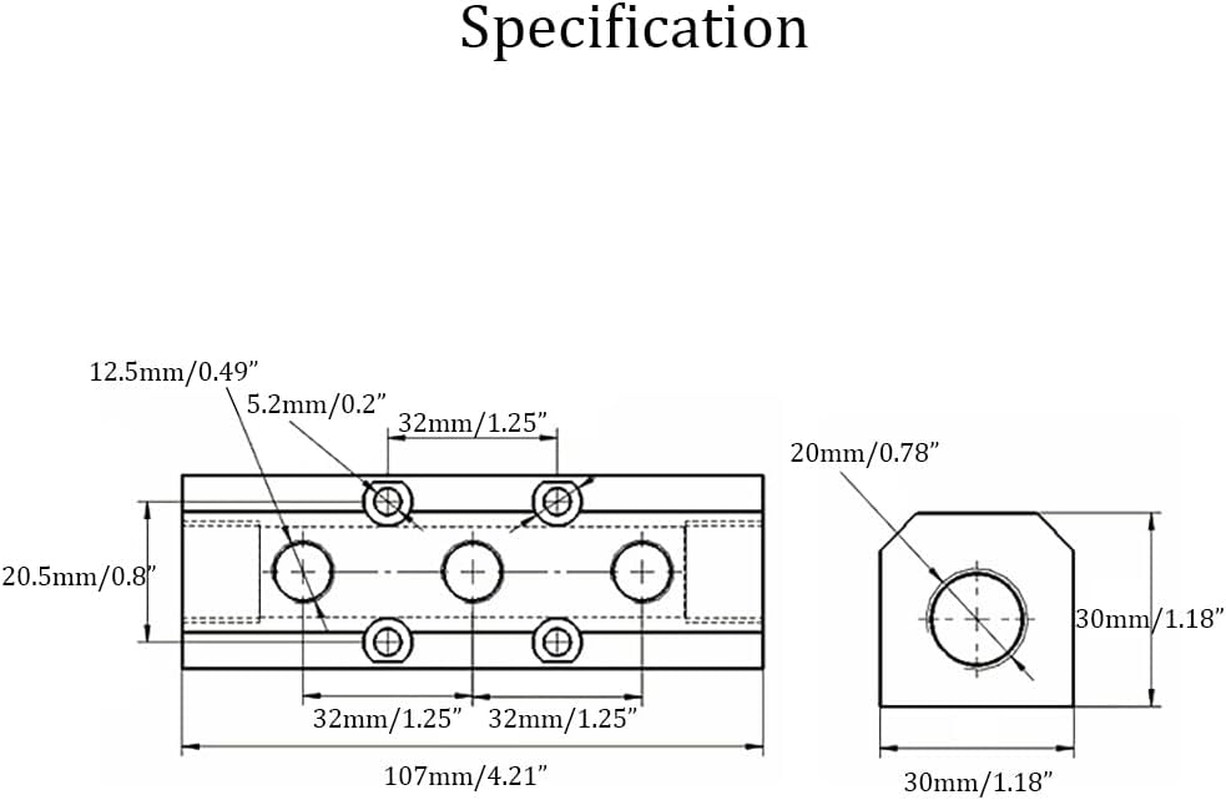

3 Way Pneumatic Manifold Air Distribution Block, G1/2 Supply Port, G1/4-Inch Out. Air manifold for distributing pneumatic power to multiple locations from a single source. Two G1/2" inlet ports and three G1/4" outlet ports. Outlet Port Center Distance: 32mm/1.25”. Mounting Port Center Distance: 20.5mm/0.8”. 3 Way Pneumatic Manifold Air Distribution Block, G1/2 Supply Port, G1/4-Inch Output Port, Aluminum Alloy Product Details Air manifold for distributing pneumatic power to multiple locations from a single source. Two G1/2" inlet ports and three G1/4" outlet ports. High pressure resistance and strong sealing. Efficient and stable performance, easy to install and sustainable. It is suitable for air compressor or storage gas equipment branch outlet, or used as supporting parts of machine equipment, generally installed in the gas terminal branch interface or engineering wiring pipeline branch. Specifications: Type: 3 Way 5 Port Inlet Port Diameter: G1/2 (20mm/0.78”) Outlet Port Diameter: G1/4 (12.5mm/0.49”) Total Length: 107mm/4.21” Width: 30mm/1.18” Height: 30mm/1.18” Mounting Port Diameter: 5.2mm/0.2” Outlet Port Center Distance: 32mm/1.25” Mounting Port Center Distance: 20.5mm/0.8” Unit Count 1 Count Color Silver Material Aluminum Material Type Aluminum Manufacturer Part Number B085RW8XWJCA NARF Model Number B085RW8XWJCA NARF Connector Type NPT Item Weight 1 Pounds Thread Type NPT Number of Pieces 1 Exterior Finish Aluminum Thread Size 0.25 inch Size 3 Way 5 Port 1.57 inches x 4.57 inches x 1.3 inches. Weight: 1.0 lb
